Ford Fusion: Rear Seats / Rear Seat Cushion. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Rear Seats / Rear Seat Cushion. Removal and Installation

Removal

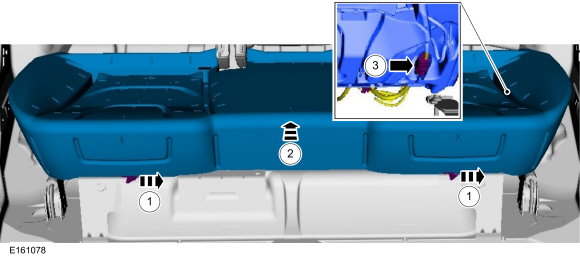

  1. Remove the rear seat cushion.
    1. Release the locking tabs.
    1. Position the rear seat cushion upward.
    1. If equipped with heated seats.
      Disconnect the electrical connector.
Ford Fusion. Rear Seat Cushion. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
