Ford Fusion: Rear Seats / Rear Seat Cushion Cover. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Rear Seats / Rear Seat Cushion Cover. Removal and Installation

Special Tool(s) / General Equipment

Hog Ring Plier

Removal

Remove the rear seat cushion.
Refer to: Rear Seat Cushion (501-10B Rear Seats, Removal and Installation).

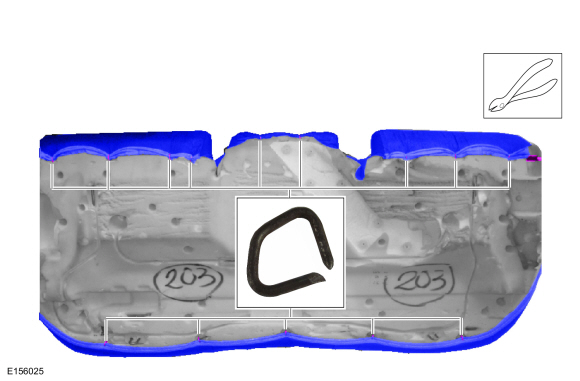

Remove the hog rings and rear seat cushion cover.

Installation

To install, reverse the removal procedure.
Use the General Equipment: Hog Ring Plier
