Ford Fusion: Rear Seats / Rear Seat Armrest. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Rear Seats / Rear Seat Armrest. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the rear seat cushion.
    Refer to: Rear Seat Cushion (501-10B Rear Seats, Removal and Installation).

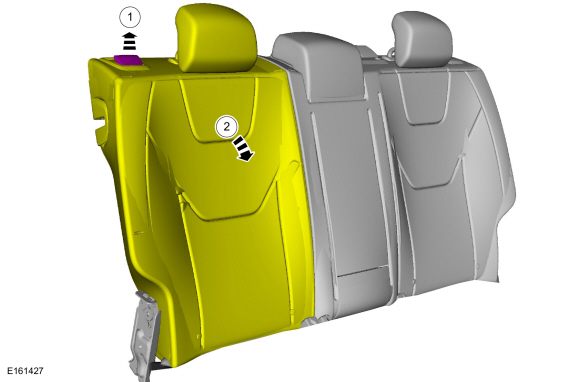

    1. Lift the rear seat latch release handle.
    1. Lower the rear seat backrest.
Ford Fusion. Rear Seat Armrest. Removal and Installation
  1. If equipped with heated seats.

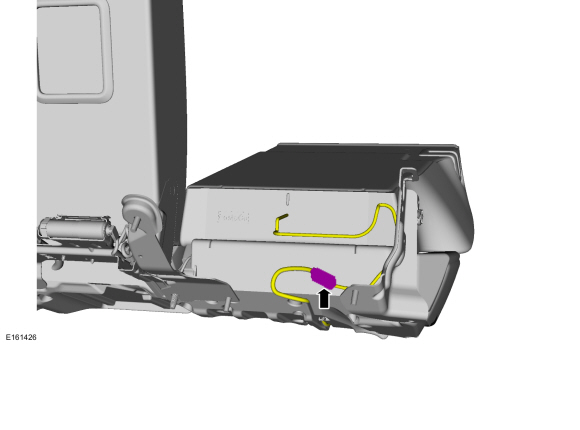

    Disconnect the heated seat electrical connector.
Ford Fusion. Rear Seat Armrest. Removal and Installation
    1. Lower the backrest.

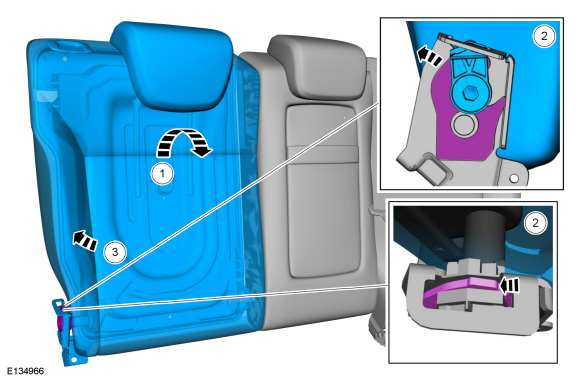

    1. Rotate the backrest hinge locking arm rearward and release the backrest.
    1. Remove the seat backrest.
Ford Fusion. Rear Seat Armrest. Removal and Installation

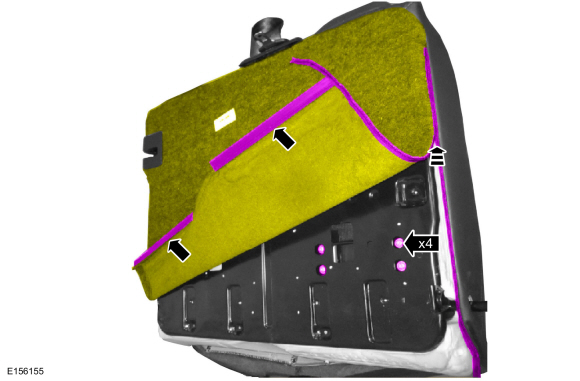

  1. Unzip the backrest cover, release the backrest cover J-clips and remove the bolts.
    Torque: 89 lb.in (10 Nm)
Ford Fusion. Rear Seat Armrest. Removal and Installation

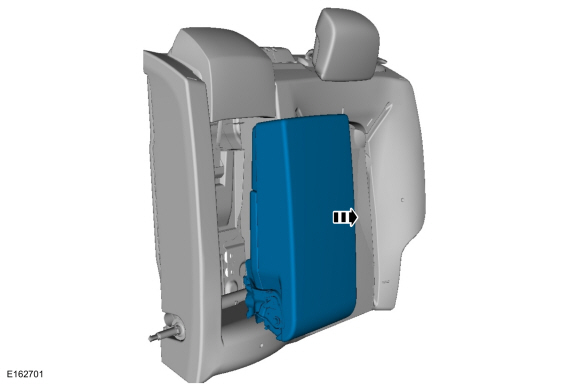

  1. Remove the rear seat armrest.
Ford Fusion. Rear Seat Armrest. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
