Ford Fusion: Rear Seats / Rear Head Restraint Guide Sleeve. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Rear Seats / Rear Head Restraint Guide Sleeve. Removal and Installation

Special Tool(s) / General Equipment

Flat Headed Screw Driver

Removal

NOTE: 60 percent seat shown, 40 percent seat similar.

  1. Remove the head restraints.
Ford Fusion. Rear Head Restraint Guide Sleeve. Removal and Installation
  1. NOTE: Backrest trim cover removed for clarity.

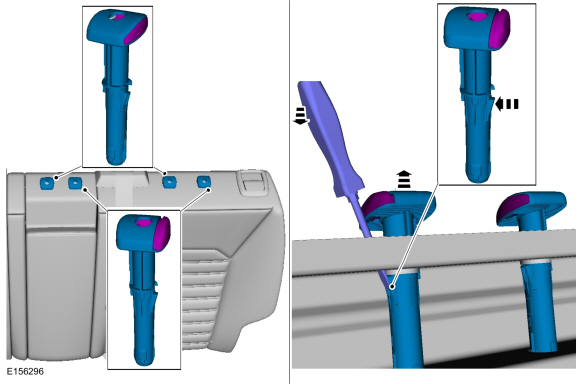

    Release the locking tabs and remove the rear head restraint guide sleeves.
    Use the General Equipment: Flat Headed Screw Driver
Ford Fusion. Rear Head Restraint Guide Sleeve. Removal and Installation

Installation

  1. NOTE: Make sure the holes in the backrest cover and backrest foam pad are aligned to the holes in the backrest frame.

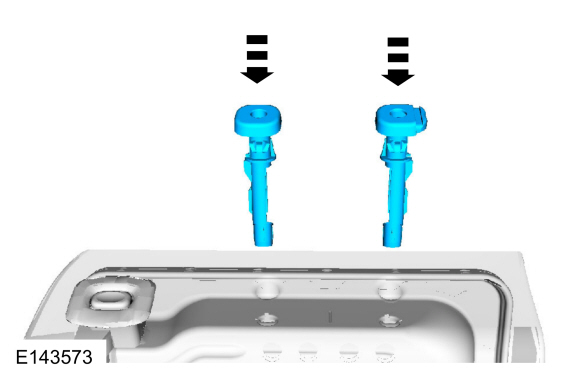

    Install the head restraint guide sleeves.
Ford Fusion. Rear Head Restraint Guide Sleeve. Removal and Installation
  1. By hand, pull upward on the head restraint guide sleeves and make sure they are properly locked into the backrest frame holes. If either of the head restraint guide sleeves can be removed by hand, repeat the installation procedure. If the head restraint guide sleeve(s) can be removed again after installing a second time, install a new head restraint guide sleeve(s).

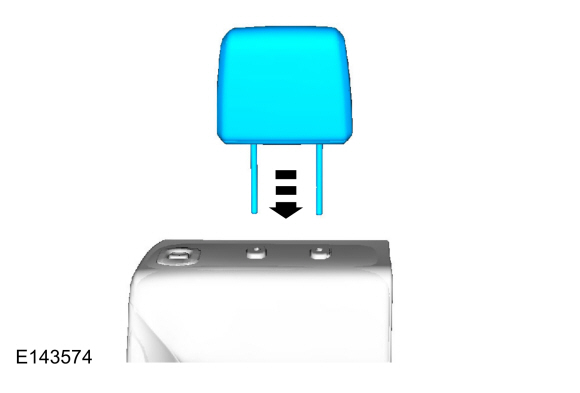

  1. Install the head restraint.
Ford Fusion. Rear Head Restraint Guide Sleeve. Removal and Installation

    Rear Seats

    ..

    Rear Seat Armrest. Removal and Installation

    Removal NOTE: Removal steps in this procedure may contain installation details. Remove the rear seat cushion. Refer to: Rear Seat Cushion (501-10B Rear Seats, Removal and Installation)...
