Ford Fusion: Engine System - General Information / Valve Stem Diameter. General Procedures

Check

NOTE: Refer to the appropriate Section 303-01 for the specification.

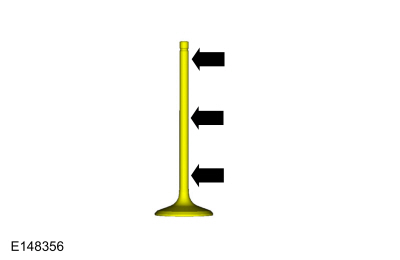

  1. Measure the diameter of each intake and exhaust valve stem at the points shown. Verify the diameter is within specification.
Ford Fusion. Valve Stem Diameter. General Procedures
