Ford Fusion: Engine System - General Information / Connecting Rod Bearing Journal Clearance. General Procedures

Ford Fusion 2013–2020 Service Manual / Powertrain / Engine / Engine System - General Information / Connecting Rod Bearing Journal Clearance. General Procedures

Check

NOTE: Refer to the appropriate Section 303-01 for the specification.

  1. NOTE: The crankshaft connecting rod journals must be within specifications to check the connecting rod bearing journal clearance.

    Remove the connecting rod bearing cap and connecting rod bearing.

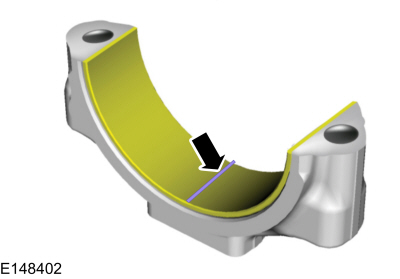

  1. Position a piece of Plastigage across the bearing surface.
Ford Fusion. Connecting Rod Bearing Journal Clearance. General Procedures
  1. NOTE: Do not turn the crankshaft during this step.

    Install and tighten to specifications, then remove the connecting rod bearing cap.

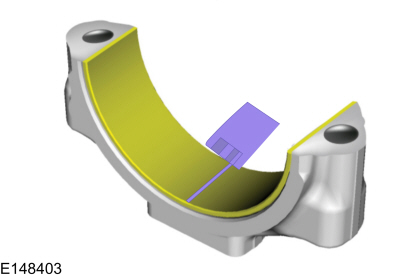

  1. Measure the Plastigage to get the connecting rod bearing journal clearance. The Plastigage should be smooth and flat. A changing width indicates a tapered or damaged connecting rod or connecting rod bearing.
Ford Fusion. Connecting Rod Bearing Journal Clearance. General Procedures

    Bearing Inspection. General Procedures
