Removal

NOTE: Removal steps in this procedure may contain installation details.

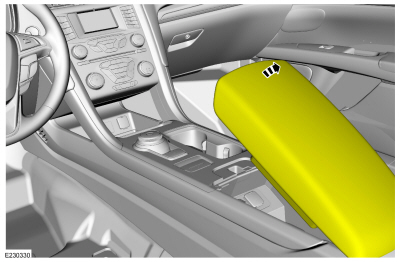

  1. Open the floor console stowage bin lid.
Ford Fusion. Passive Anti-Theft System (PATS) Center Antenna. Removal and Installation
  1. On both sides.

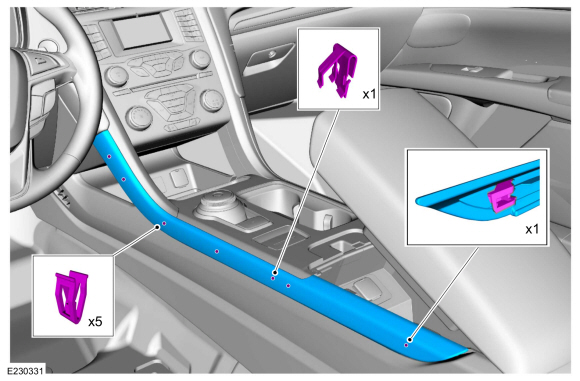

    Detach the clips and remove the floor console upper side finish panel.
Ford Fusion. Passive Anti-Theft System (PATS) Center Antenna. Removal and Installation

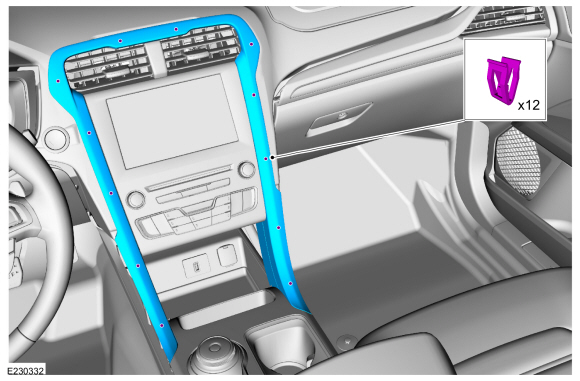

  1. Detach the clips and remove the instrument panel center finish panel.
Ford Fusion. Passive Anti-Theft System (PATS) Center Antenna. Removal and Installation

    1. Remove the screws.
    1. Detach the clips.

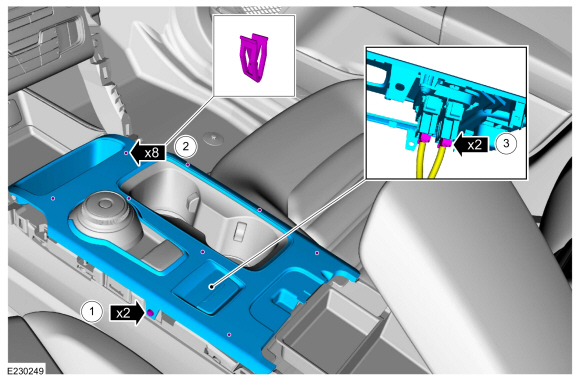

    1. Remove the upper floor console finish panel and disconnect the electrical connectors.
Ford Fusion. Passive Anti-Theft System (PATS) Center Antenna. Removal and Installation

    1. Remove the screws.
    1. Detach the clips.

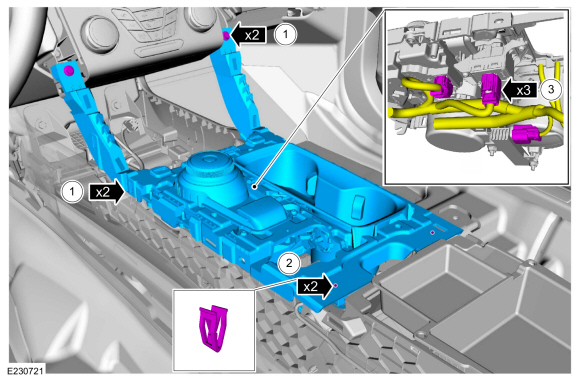

    1. Remove the floor console upper support and disconnect the electrical connectors.
Ford Fusion. Passive Anti-Theft System (PATS) Center Antenna. Removal and Installation

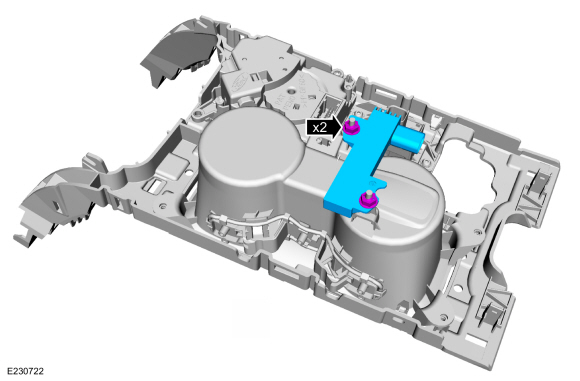

  1. Remove the nuts and the PATS center antenna.
    Torque: 27 lb.in (3 Nm)
Ford Fusion. Passive Anti-Theft System (PATS) Center Antenna. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
  1. NOTE: Anytime the parking brake switch electrical connector has been disconnected, the EPB system is deactivated and a DTC is stored in the ABS module. Perform the following step to restore the EPB system and clear the ABS module DTC.

    Apply and release the parking brake twice within 5 seconds, pausing with the switch in the NEUTRAL position for approximately one-half second between each apply and release.
