Ford Fusion: Battery, Mounting and Cables / Battery Cables - 1.5L EcoBoost (118kW/160PS) – I4. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Electrical / Battery and Charging System / Battery, Mounting and Cables / Battery Cables - 1.5L EcoBoost (118kW/160PS) – I4. Removal and Installation

Removal

NOTE: This procedure provides information about routing, retaining points and connectors of the cable. It does not include the steps for removing components to gain access to the cable.

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. Disconnect the battery.
    Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

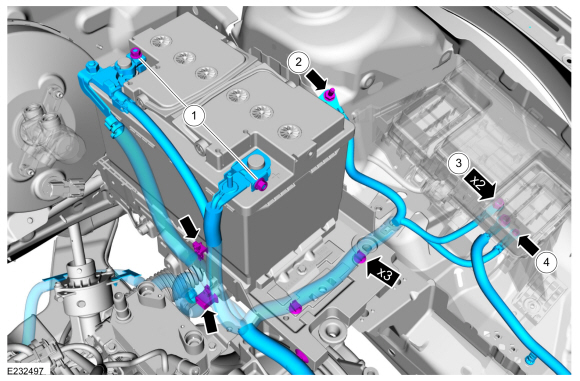

    1. Torque: 44 lb.in (5 Nm)
    1. Torque: 106 lb.in (12 Nm)
    1. Torque: 106 lb.in (12 Nm)
    1. Torque: 44 lb.in (5 Nm)

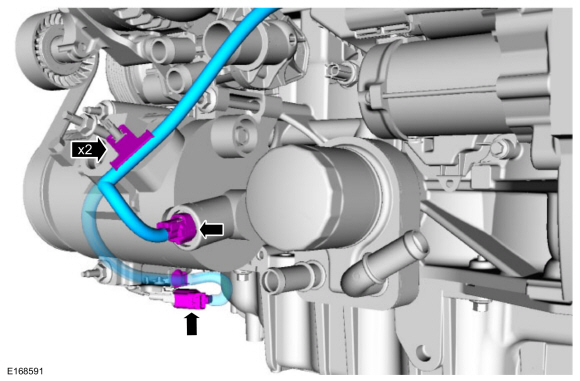

Ford Fusion. Battery Cables - 1.5L EcoBoost (118kW/160PS) – I4. Removal and Installation
  1. Torque: 106 lb.in (12 Nm)

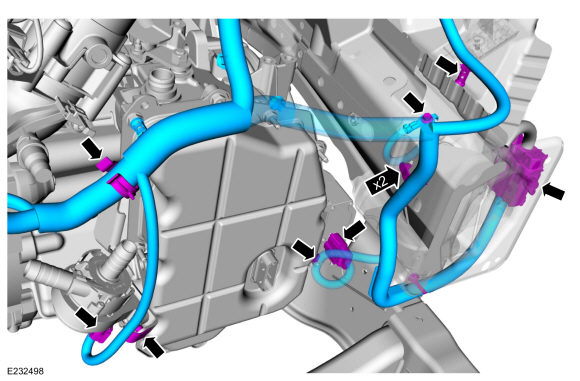

Ford Fusion. Battery Cables - 1.5L EcoBoost (118kW/160PS) – I4. Removal and Installation
    1. Torque: 106 lb.in (12 Nm)
    1. Torque: 53 lb.in (6 Nm)
    1. Torque: 89 lb.in (10 Nm)

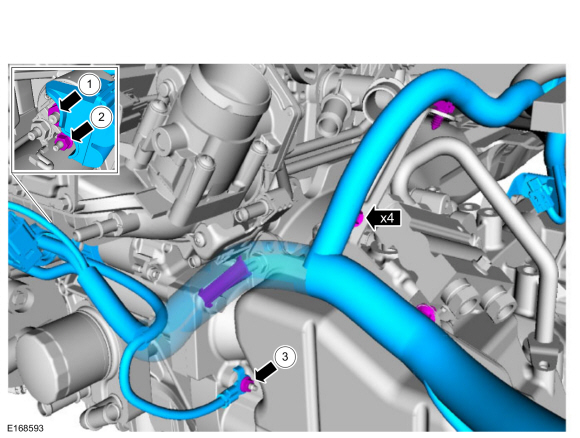

Ford Fusion. Battery Cables - 1.5L EcoBoost (118kW/160PS) – I4. Removal and Installation
  1. Torque: 150 lb.in (17 Nm)

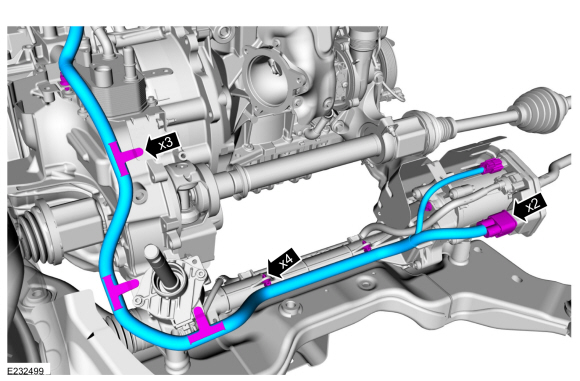

Ford Fusion. Battery Cables - 1.5L EcoBoost (118kW/160PS) – I4. Removal and Installation

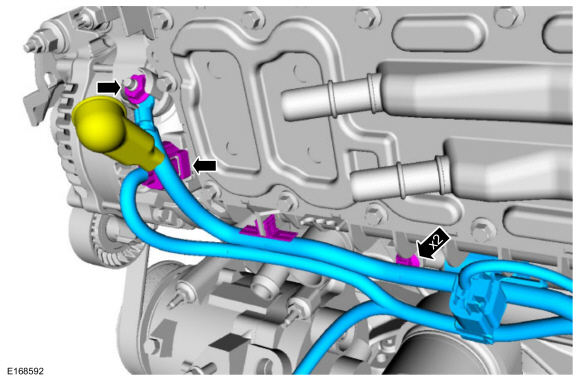

Ford Fusion. Battery Cables - 1.5L EcoBoost (118kW/160PS) – I4. Removal and Installation
Ford Fusion. Battery Cables - 1.5L EcoBoost (118kW/160PS) – I4. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
