Ford Fusion: Wipers and Washers / Windshield Washer Pump. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Wipers and Washers / Windshield Washer Pump. Removal and Installation

Special Tool(s) / General Equipment

Fluid Container

Removal

Remove the RH side Fender Splash Shield.
Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

NOTICE: Be prepared to collect escaping fluid.

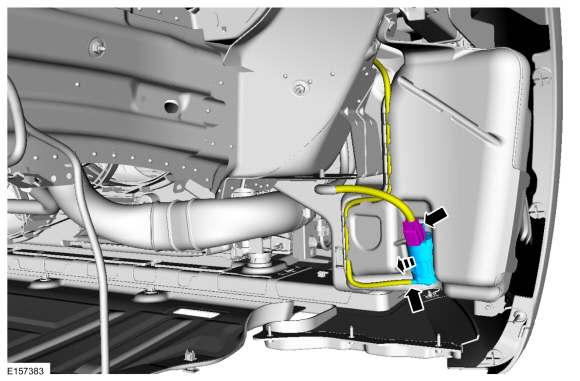

Remove the windshield washer pump.
- Disconnect the electrical connector and remove the hose.
- Remove the windshield washer pump.
  Use the General Equipment: Fluid Container

Installation

To install, reverse the removal procedure.

Windshield Wiper Motor. Removal and Installation

Removal NOTE: LH windshield wiper motor shown, RH windshield wiper motor similar. NOTE: Removal steps in this procedure may contain installation details...

Windshield Washer Reservoir. Removal and Installation

Removal NOTE: Removal steps in this procedure may contain installation details. Remove the cap. Remove the RH side Fender Splash Shield...
