Ford Fusion: Wipers and Washers / Windshield Washer Reservoir. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Wipers and Washers / Windshield Washer Reservoir. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

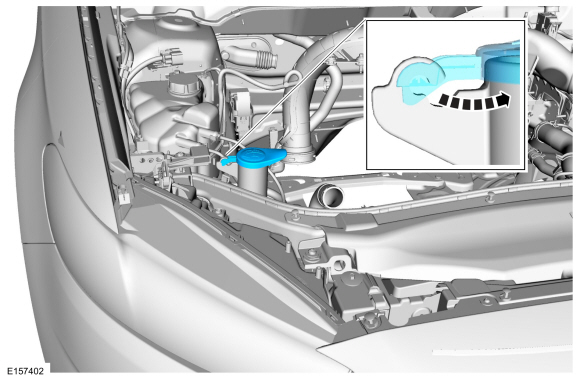

  1. Remove the cap.
Ford Fusion. Windshield Washer Reservoir. Removal and Installation

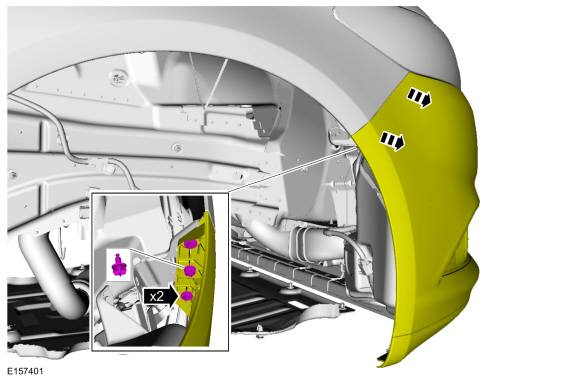

  1. Remove the RH side Fender Splash Shield.
    Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

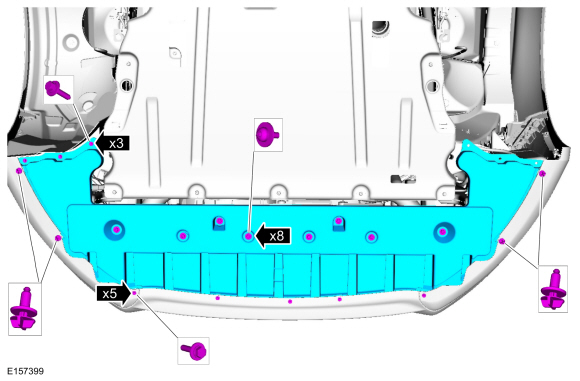

  1. Remove the bolts, the retainers and the front underbody shield.
Ford Fusion. Windshield Washer Reservoir. Removal and Installation
  1. Remove the retainers and position aside the front bumper cover.
Ford Fusion. Windshield Washer Reservoir. Removal and Installation
  1. NOTICE: Be prepared to collect escaping fluid.

    NOTE: Front bumper cover removed for clarity.

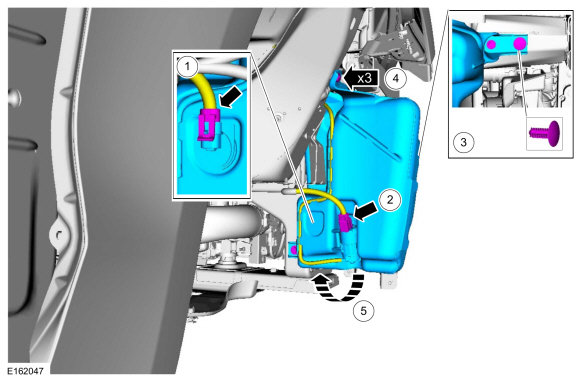

    Remove the windshield washer reservoir.
    1. If equipped.
      Disconnect the electrical connector.
    1. Disconnect the electrical connector.
    1. Remove the retainers.
    1. Remove the bolts.
      Torque: 44 lb.in (5 Nm)
    1. Remove the windshield washer reservoir.
Ford Fusion. Windshield Washer Reservoir. Removal and Installation

Installation

  1. NOTE: Transfer parts as necessary.

    To install, reverse the removal procedure.
