Before cutting or welding,
For additional information, refer to: Specifications (501-25 Body Repairs - General Information, Specifications).
Bumper Beams
Bumper beams are typically constructed of HS (high-strength) or stronger class steel. If the bumper beam shows evidence of a kink or tear it is not repairable and must be replaced. The use of heat to repair these components is not allowed and will result in weakening the component. Minor damage made be corrected through cold straightening only.

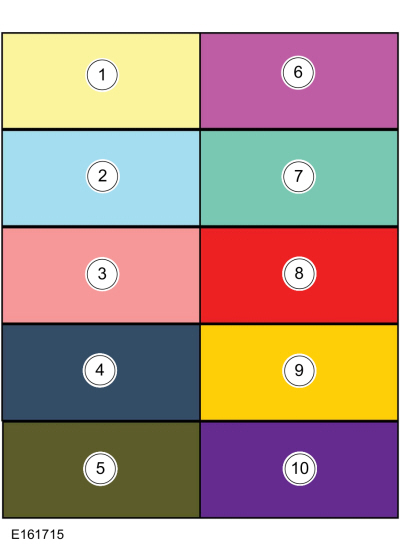

Steel Type Legend
| Item | Steel Type | Color |
| 1 | Mild Steel | Yellow |
| 2 | Bake Hardened (BH) | Light Blue |
| 3 | Solid Solution Strength | Pink |
| 4 | High Strength Low Allow (HSLA) | Dark Blue |
| 5 | Dual Phase (DP) 500, 600 Class Steel | Green |
| 6 | Dual Phase (DP) 700, 800, 900, 1000 Class Steel | Fuchsia |
| 7 | Laminate Steel | Teal |
| 8 | Ultra High Strength Steel (UHSS) Martensitic, Boron | Red |
| 9 | Transformation Induced Plasticity Steel (TRIP) | Gold |
| 10 | Aluminum | Purple |

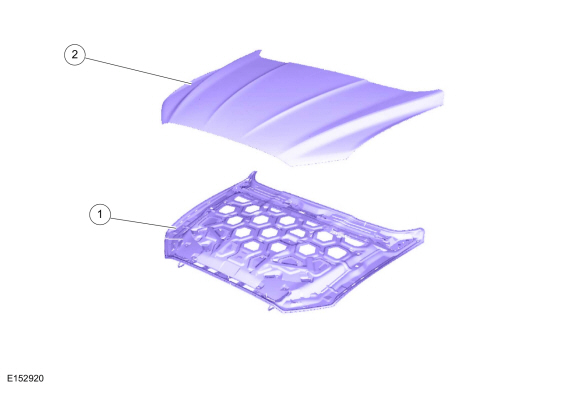

Hood
| Item | Description | Steel Type |
| 1 | Hood inner panel | Aluminum |
| 2 | Hood outer panel | Aluminum |

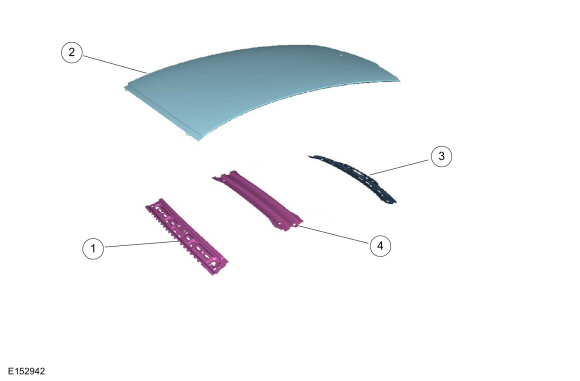

Roof Panel
| Item | Description | Steel Type |
| 1 | Windshield header reinforcement | DP (Dual Phase) 780 steel |
| 2 | Roof panel | BH (Bake Hardened) 210 steel |
| 3 | Rear header reinforcement | HSLA (High-Strength Low Alloy) 350 steel |
| 4 | Center roof reinforcement | Martensitic steel |
Roof with Roof Opening Panel
| Item | Description | Steel Type |
| 1 | Windshield header reinforcement | DP (Dual Phase) 780 steel |
| 2 | Roof panel | BH (Bake Hardened) 210 steel |
| 3 | Rear header reinforcement | HSLA (High-Strength Low Alloy) 350 steel |
| 4 | Roof opening panel reinforcement | Boron steel |

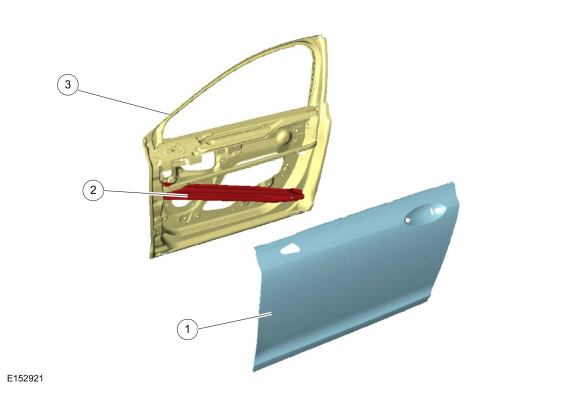

Front Door
| Item | Description | Steel Type |
| 1 | Door outer panel | BH (Bake Hardened) 210 steel |
| 2 | Intrusion beam (part of door shell) | Boron steel |
| 3 | Door shell | Mild steel |

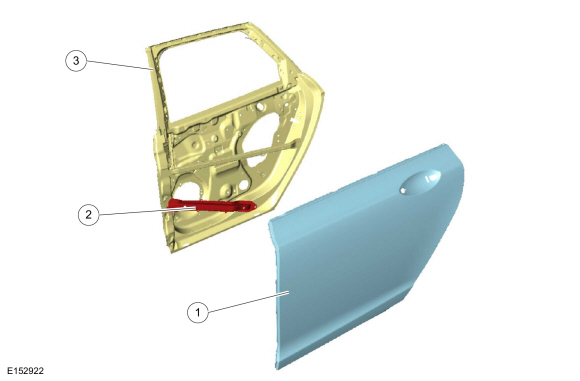

Rear Door
| Item | Description | Steel Type |
| 1 | Door outer panel | BH (Bake Hardened) 210 steel |
| 2 | Intrusion beam (part of door shell) | Boron steel |
| 3 | Door shell | Mild steel |

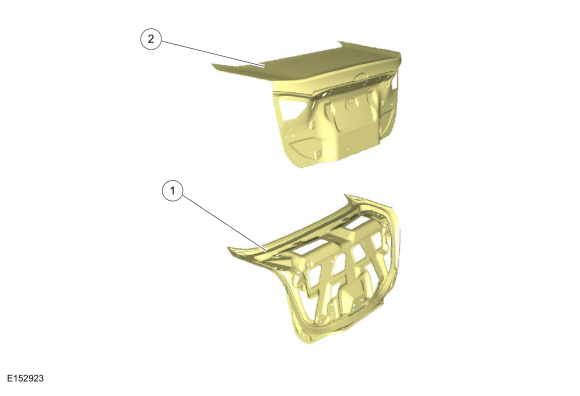

Luggage Compartment Lid
| Item | Description | Steel Type |
| 1 | Luggage compartment lid inner panel | Mild steel |
| 2 | Luggage compartment lid outer panel | Mild steel |

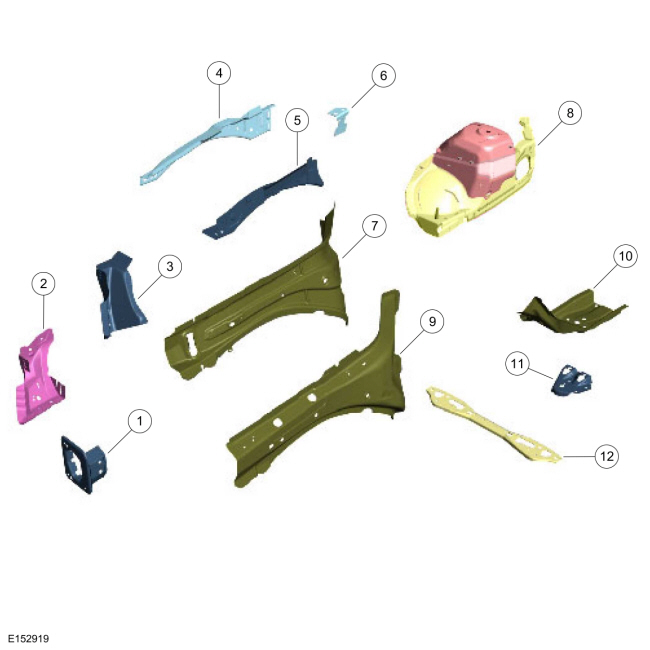

Front Structure
| Item | Description | Steel Type |
| 1 | Bumper bracket | HSLA (high strength low alloy) 350 steel |
| 2 | Brace (part of front apron assembly) | DP (Dual Phase) 800 steel |
| 3 | Reinforcement (part of front apron assembly) | HSLA (High-Strength Low Alloy) 350 steel |
| 4 | Apron assembly inner reinforcement | BH (bake hardened) 210 steel |
| 5 | Apron assembly outer reinforcement | HSLA (High-Strength Low Alloy) 350 steel |
| 6 | Front fender bracket | BH (bake hardened) 210 steel |
| 7 | Inner reinforcement (part of front side member assembly) | DP (Dual Phase) 600 steel |
| 8 | Strut tower (part of front apron assembly) | Solid Solution Strength Steel and mild steel |
| 9 | Outer reinforcement (part of front side member assembly) | DP (Dual Phase) 600 steel |
| 10 | Reinforcement (part of front side member assembly) | DP (Dual Phase) 600 steel |
| 11 | Bracket | HSLA (High-Strength Low Alloy) 300 steel |
| 12 | Cross member assembly | Mild steel |

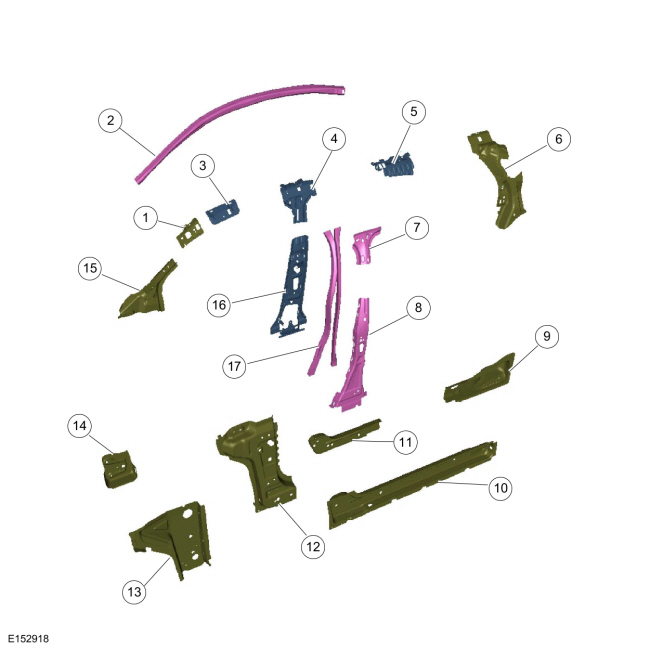

Bodyside Inner Panels
| Item | Description | Steel Type |
| 1 | A-pillar reinforcement | DP (Dual Phase) 600 steel |
| 2 | Roof reinforcement | DP (Dual Phase) 1000 steel |
| 3 | Reinforcement | HSLA (High-Strength Low Alloy) 350 steel |
| 4 | B-pillar reinforcement | HSLA (High-Strength Low Alloy) 350 steel |
| 5 | Reinforcement | HSLA (High-Strength Low Alloy) 350 steel |
| 6 | Quarter panel inner reinforcement | DP (Dual Phase) 600 steel |
| 7 | B-pillar reinforcement | DP (Dual Phase) 800 steel |
| 8 | B-pillar reinforcement | DP (Dual Phase) 800 steel |
| 9 | Rocker panel inner reinforcement | DP (Dual Phase) 600 steel |
| 10 | Rocker panel inner reinforcement | DP (Dual Phase) 600 steel |
| 11 | Rocker panel inner reinforcement | DP (Dual Phase) 600 steel |
| 12 | A-pillar inner reinforcement | DP (Dual Phase) 600 steel |
| 13 | Cowl side panel reinforcement | DP (Dual Phase) 600 steel |
| 14 | Cowl side panel reinforcement | DP (Dual Phase) 600 steel |
| 15 | A-pillar upper reinforcement | DP (Dual Phase) 600 steel |
| 16 | B-pillar inner reinforcement | HSLA (High-Strength Low Alloy) 350 steel |
| 17 | B-pillar inner reinforcement | DP (Dual Phase) 800 steel |

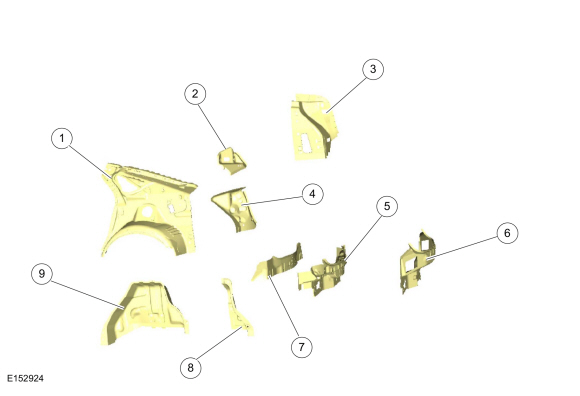

Quarter Panel and Rear Panel
| Item | Description | Steel Type |
| 1 | Quarter panel and wheelhouse | Mild steel |
| 2 | Reinforcement | Mild steel |
| 3 | Reinforcement | Mild steel |
| 4 | Tail lamp panel | Mild steel |
| 5 | Rear panel reinforcement | Mild steel |
| 6 | Rear panel | Mild steel |
| 7 | Rear panel inner | Mild steel |
| 8 | Luggage compartment drain trough | Mild steel |
| 9 | Inner wheel house | Mild steel |

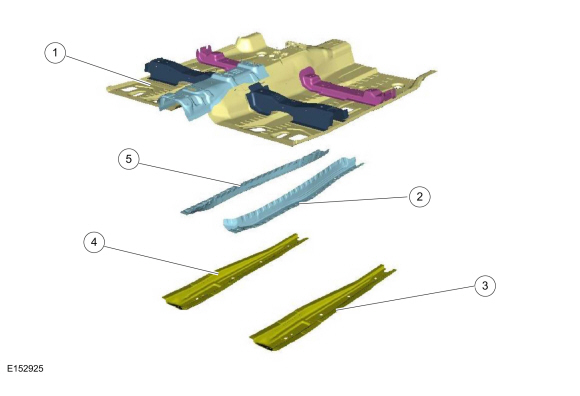

Front Floor
| Item | Description | Steel Type |
| 1 | Floor pan assembly | Mild, HSLA (High-Strength Low Alloy) 350, DP (Dual Phase) 800 steel and BH (Bake Hardened) 280 steel |
| 2 | Center floor reinforcement | BH (Bake Hardened) 280 steel |
| 3 | Center floor reinforcement | DP (Dual Phase) 600 steel |
| 4 | Center floor reinforcement | DP (Dual Phase) 600 steel |
| 5 | Center floor reinforcement | BH (Bake Hardened) 280 steel |

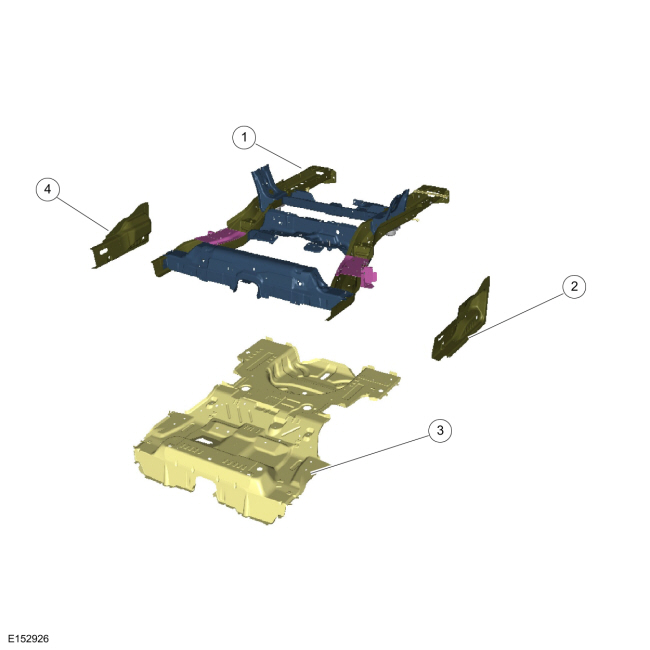

Rear Floor
| Item | Description | Steel Type |
| 1 | Floor pan reinforcements (part of floor pan assembly) | HSLA (High-Strength Low Alloy) 350, DP (Dual Phase) 600 and DP (Dual Phase) 800 steel |
| 2 | Floor side member | DP (Dual Phase) 600 steel |
| 3 | Floor pan | Mild steel |
| 4 | Floor side member | DP (Dual Phase) 600 steel |
