Ford Fusion: Transmission Cooling - 6-Speed Automatic Transmission – 6F35 / Transmission Fluid Cooler - 1.5L EcoBoost (118kW/160PS) – I4/2.5L Duratec (110kW/150PS). Removal and Installation

Ford Fusion 2013–2020 Service Manual / Powertrain / Automatic Transmission / Transmission Cooling - 6-Speed Automatic Transmission – 6F35 / Transmission Fluid Cooler - 1.5L EcoBoost (118kW/160PS) – I4/2.5L Duratec (110kW/150PS). Removal and Installation

Removal

  1. With the vehicle in N, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. Remove the air cleaner.
    Refer to: Air Cleaner (303-12A Intake Air Distribution and Filtering - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).
    Refer to: Air Cleaner (303-12C Intake Air Distribution and Filtering - 2.5L Duratec (125kW/170PS), Removal and Installation).

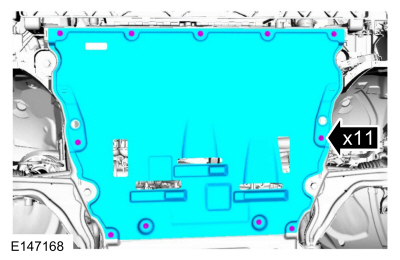

  1. Remove the retainers and the engine undershield.
Ford Fusion. Transmission Fluid Cooler - 1.5L EcoBoost (118kW/160PS) – I4/2.5L Duratec (110kW/150PS). Removal and Installation
  1. Drain the cooling system.
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03A Engine Cooling - 1.5L EcoBoost (118kW/160PS) – I4, General Procedures).
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03C Engine Cooling - 2.5L Duratec (125kW/170PS), General Procedures).

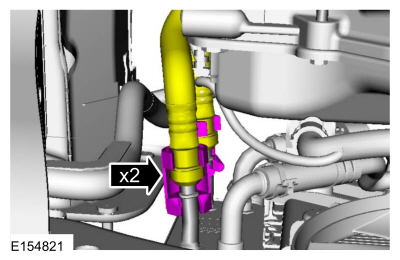

  1. Remove the transmission fluid cooler tube secondary latches.
Ford Fusion. Transmission Fluid Cooler - 1.5L EcoBoost (118kW/160PS) – I4/2.5L Duratec (110kW/150PS). Removal and Installation

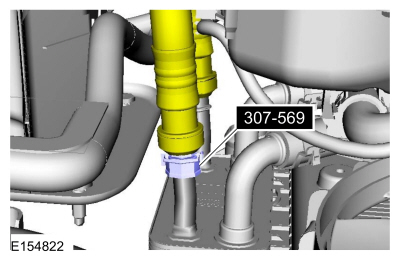

  1. NOTE: Use suitable paper to absorb any escaping fluid.

    Using the special tool, disconnect the transmission fluid cooler tubes.
Ford Fusion. Transmission Fluid Cooler - 1.5L EcoBoost (118kW/160PS) – I4/2.5L Duratec (110kW/150PS). Removal and Installation

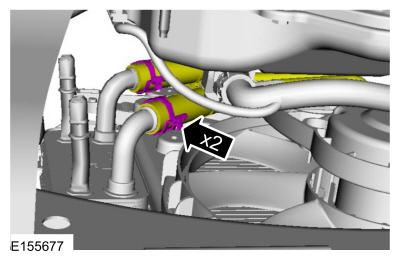

  1. Release the clamps and disconnect the coolant hoses.
Ford Fusion. Transmission Fluid Cooler - 1.5L EcoBoost (118kW/160PS) – I4/2.5L Duratec (110kW/150PS). Removal and Installation

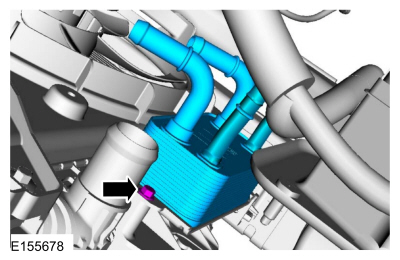

  1. Remove the bolt and the transmission fluid cooler.
Ford Fusion. Transmission Fluid Cooler - 1.5L EcoBoost (118kW/160PS) – I4/2.5L Duratec (110kW/150PS). Removal and Installation

Installation

  1. Install the transmission fluid cooler and the bolt.
    Torque: 53 lb.in (6 Nm)
Ford Fusion. Transmission Fluid Cooler - 1.5L EcoBoost (118kW/160PS) – I4/2.5L Duratec (110kW/150PS). Removal and Installation

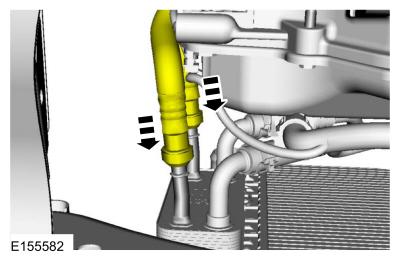

  1. Connect the transmission fluid auxiliary cooler tubes.
Ford Fusion. Transmission Fluid Cooler - 1.5L EcoBoost (118kW/160PS) – I4/2.5L Duratec (110kW/150PS). Removal and Installation
  1. Install the transmission fluid auxiliary cooler tube secondary latches.
Ford Fusion. Transmission Fluid Cooler - 1.5L EcoBoost (118kW/160PS) – I4/2.5L Duratec (110kW/150PS). Removal and Installation
  1. Attach the coolant hoses and position the clamps.
Ford Fusion. Transmission Fluid Cooler - 1.5L EcoBoost (118kW/160PS) – I4/2.5L Duratec (110kW/150PS). Removal and Installation
  1. Install the engine undershield and the retainers.
Ford Fusion. Transmission Fluid Cooler - 1.5L EcoBoost (118kW/160PS) – I4/2.5L Duratec (110kW/150PS). Removal and Installation
  1. Install the air cleaner.
    Refer to: Air Cleaner (303-12A Intake Air Distribution and Filtering - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).
    Refer to: Air Cleaner (303-12C Intake Air Distribution and Filtering - 2.5L Duratec (125kW/170PS), Removal and Installation).
  1. Fill and bleed the cooling system.
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03A Engine Cooling - 1.5L EcoBoost (118kW/160PS) – I4, General Procedures).
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03C Engine Cooling - 2.5L Duratec (125kW/170PS), General Procedures).
  1. Check the transmission fluid level and adjust as necessary.
    Refer to: Transmission Fluid Level Check (307-01A Automatic Transmission - 6-Speed Automatic Transmission – 6F35, General Procedures).
