Ford Fusion: Transmission Cooling - 6-Speed Automatic Transmission – 6F35 / Cooler Bypass Valve - 1.5L EcoBoost (110kW/150PS) – I4. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Powertrain / Automatic Transmission / Transmission Cooling - 6-Speed Automatic Transmission – 6F35 / Cooler Bypass Valve - 1.5L EcoBoost (110kW/150PS) – I4. Removal and Installation

Removal

  1. Remove the air cleaner.
    Refer to: Air Cleaner (303-12A Intake Air Distribution and Filtering - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).

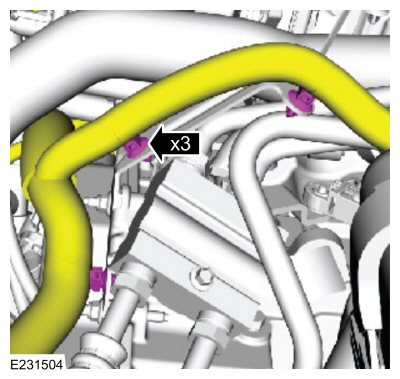

  1. Detach the wiring harness retainers from the cooler bypass valve bracket.
Ford Fusion. Cooler Bypass Valve - 1.5L EcoBoost (110kW/150PS) – I4. Removal and Installation

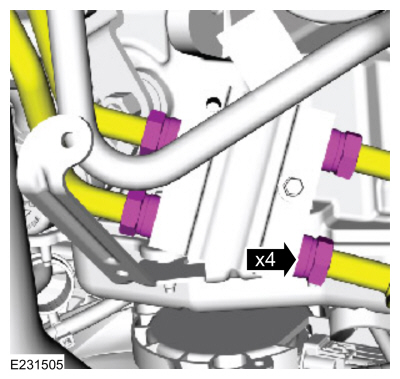

  1. NOTE: Be prepared to collect escaping fluid.

    Completely loosen the cooler bypass valve tube fittings.
Ford Fusion. Cooler Bypass Valve - 1.5L EcoBoost (110kW/150PS) – I4. Removal and Installation

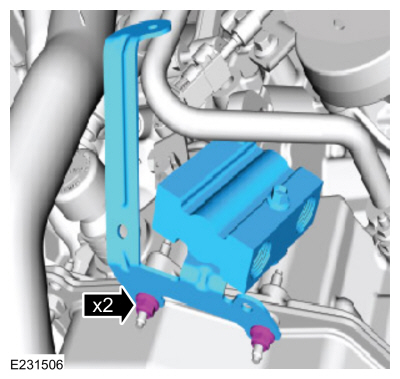

  1. Remove the nuts and the cooler bypass valve.
Ford Fusion. Cooler Bypass Valve - 1.5L EcoBoost (110kW/150PS) – I4. Removal and Installation

Installation

  1. NOTE: Leaving the cooler bypass valve nuts loose will ease installation of the transmission fluid cooler tube fittings.

    Install the cooler bypass valve and the nuts.
    Torque: 80 lb.in (9 Nm)
Ford Fusion. Cooler Bypass Valve - 1.5L EcoBoost (110kW/150PS) – I4. Removal and Installation
  1. NOTE: Leave the transmission fluid cooler tube fittings loose until after final tighten of the cooler bypass valve nuts.

    Connect the transmission fluid cooler tubes to the cooler bypass valve and tighten the fittings.
    Torque: 16 lb.ft (22 Nm)
Ford Fusion. Cooler Bypass Valve - 1.5L EcoBoost (110kW/150PS) – I4. Removal and Installation
  1. Install the air cleaner.
    Refer to: Air Cleaner (303-12A Intake Air Distribution and Filtering - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).
  1. Check the transmission fluid level and adjust as necessary.
    Refer to: Transmission Fluid Level Check (307-01A Automatic Transmission - 6-Speed Automatic Transmission – 6F35, General Procedures).

    Transmission Fluid Cooler - Backflushing and Cleaning. General Procedures

    Special Tool(s) / General Equipment Transmission Cooling System Heated Flusher Materials Name Specification Motorcraft® MERCON® LV Automatic Transmission FluidXT-10-QLVC WSS-M2C938-AMERCON® LV,   Flushing NOTICE: If the transmission plastic baffle melted due to an overheat condition, install a new cooler...

    Transmission Fluid Cooler - 1.5L EcoBoost (118kW/160PS) – I4/2.5L Duratec (110kW/150PS). Removal and Installation

    Removal With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation)...
