Removal

NOTICE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the condenser.
    Refer to: Condenser - 2.0L EcoBoost (184kW/250PS) – MI4 (412-00 Climate Control System - General Information, Removal and Installation).
    1. Remove the retainer and bracket.

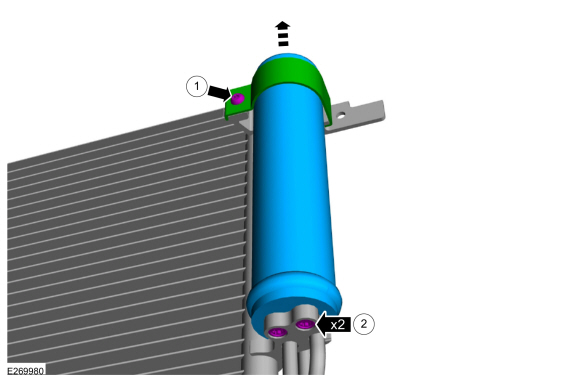

    1. Remove the retainers and the receiver drier.
      Torque: 44 lb.in (5 Nm)
    • Make sure to cover any open ports to prevent debris from entering the system.
Ford Fusion. Receiver Drier - 2.0L EcoBoost (184kW/250PS) – MI4. Removal and Installation

Installation

  1. To install, reverse the removal procedure.

  1. NOTICE: Only use the specified material to lubricate the seals.

    Install and lubricate new O-ring seals. Refer to the appropriate Specifications in Group 412.
  1. Lubricate the refrigerant system with the correct amount of clean PAG oil. Refer to the appropriate Refrigerant Oil Adding procedure in Group 412.
