Ford Fusion: Glass, Frames and Mechanisms / Front Door Window Regulator Motor. Removal and Installation
Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Glass, Frames and Mechanisms / Front Door Window Regulator Motor. Removal and Installation
Removal
-
Remove the front door window regulator.
Refer to: Front Door Window Regulator (501-11 Glass, Frames and Mechanisms, Removal and Installation).
-

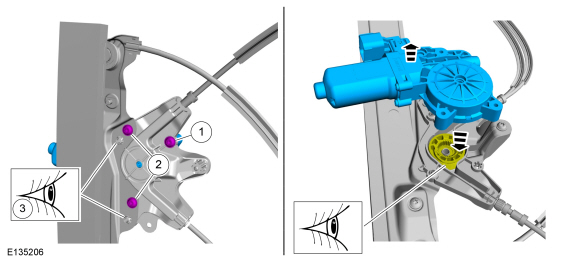

Remove the front door window regulator motor.
-
Remove the retainer.
-
Remove the retainers.
-
NOTE: Locating studs must not be removed.
Inspect the studs.
-
Remove the retainer.
 |
Installation
-
To install, reverse the removal procedure.
-
Perform the power door window initialization.
Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
