Ford Fusion: Interior Trim and Ornamentation / Steering Column Shrouds. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Interior Trim and Ornamentation / Steering Column Shrouds. Removal and Installation

Removal

WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

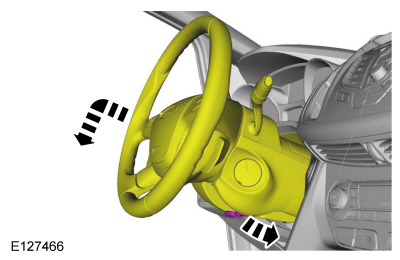

Fully extend and lower the steering column.

Ford Fusion. Steering Column Shrouds. Removal and Installation

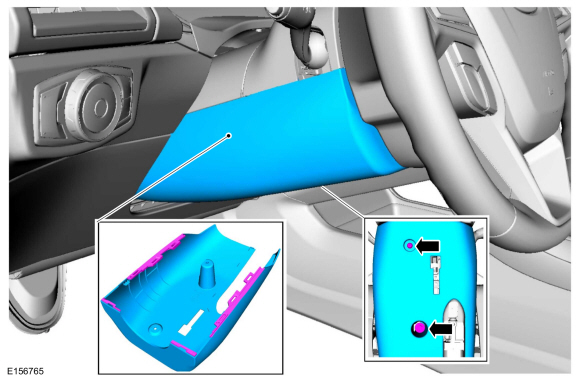

Remove the lower steering column shroud screws and the lower steering column shroud.

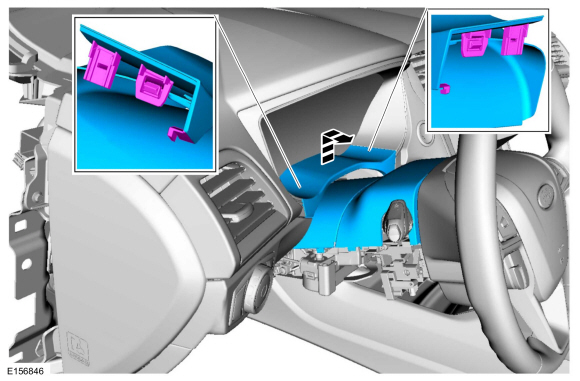

Release the tab by pulling upward and remove the upper steering column shroud.

Installation

NOTE: Transfer parts as necessary.
To install, reverse the removal procedure.
