Ford Fusion: Interior Trim and Ornamentation / Parcel Shelf. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING:
Before beginning any service procedure in this
section, refer to Safety Warnings in section 100-00 General Information.
Failure to follow this instruction may result in serious personal
injury.
Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
-
On both sides, remove the C-pillar upper trim panel.
Refer to: C-Pillar Upper Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

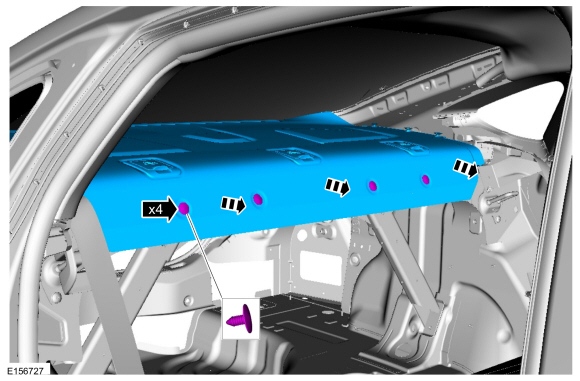

Remove the clips and the parcel shelf.
Installation
-
To install, reverse the removal procedure.
On both sides, remove the A-pillar trim panel.
Refer to: A-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
On both sides, remove the B-pillar trim panel...
