Ford Fusion: Automatic Transmission External Controls - 6-Speed Automatic Transmission – 6F35 / Selector Lever Cable Bushing. Removal and Installation

Removal

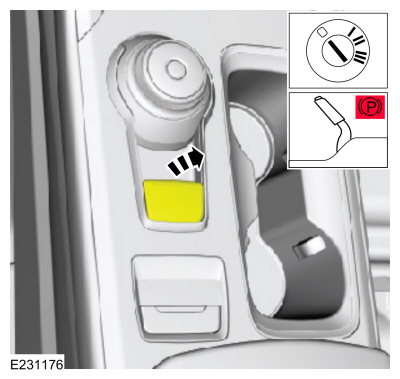

  1. Turn the ignition switch to the OFF position and apply the parking brake.
Ford Fusion. Selector Lever Cable Bushing. Removal and Installation
  1. Remove the air cleaner assembly.
    Refer to: Air Cleaner (303-12D Intake Air Distribution and Filtering - 2.7L EcoBoost (238kW/324PS), Removal and Installation).
    Refer to: Air Cleaner (303-12C Intake Air Distribution and Filtering - 2.5L Duratec (125kW/170PS), Removal and Installation).
    Refer to: Air Cleaner (303-12C Intake Air Distribution and Filtering - 2.5L Duratec (125kW/170PS), Removal and Installation).
    Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering - 2.0L EcoBoost (184kW/250PS) – MI4, Removal and Installation).
    Refer to: Air Cleaner (303-12A Intake Air Distribution and Filtering - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).

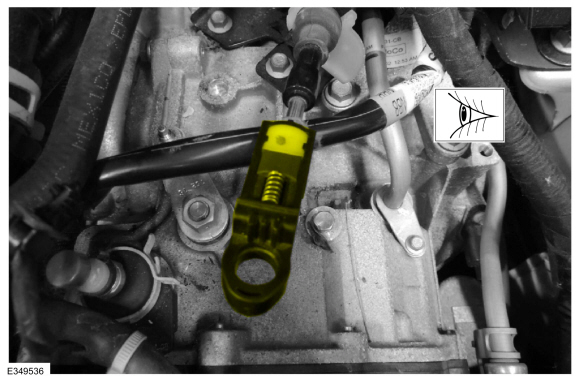

  1. Disconnect the selector lever cable from the transmission manual lever.
Ford Fusion. Selector Lever Cable Bushing. Removal and Installation

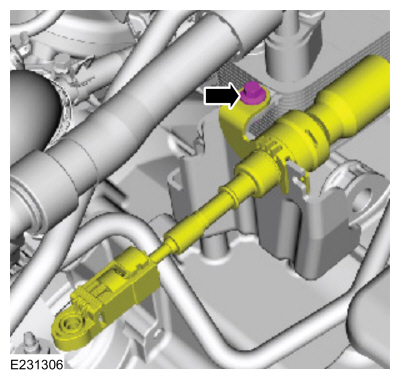

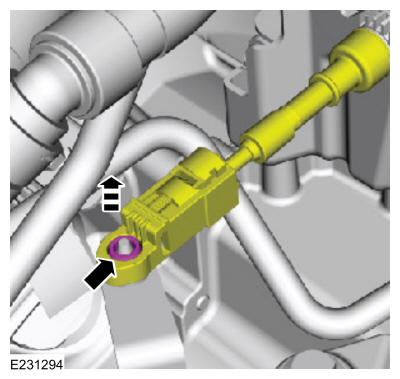

  1. Remove the selector lever cable retaining clip bolt.
Ford Fusion. Selector Lever Cable Bushing. Removal and Installation

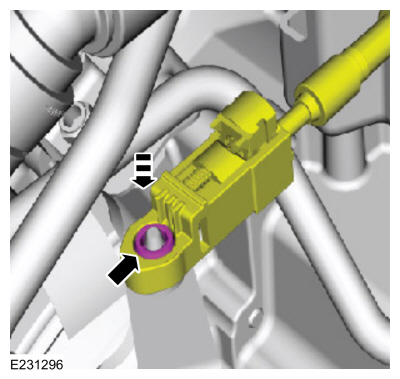

  1. Release the selector lever clip and detach the selector lever cable from the selector lever cable bracket.
Ford Fusion. Selector Lever Cable Bushing. Removal and Installation
  1. NOTE: 2013 model year vehicles only. The selector lever cable bushing is taller than the replacement bushing.

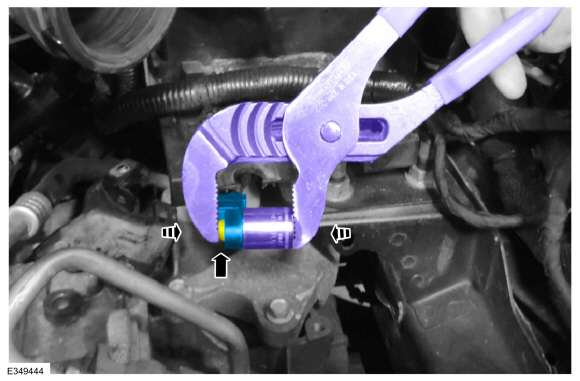

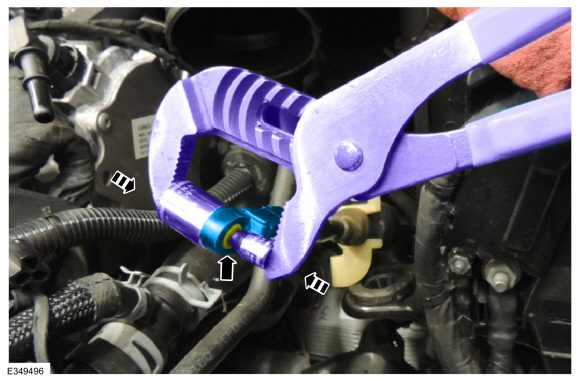

    Using a 15mm shallow socket on the bottom of the selector lever cable end, press the bushing out with straight jaw adjustable pliers.
Ford Fusion. Selector Lever Cable Bushing. Removal and Installation
  1. NOTE: 2014-2020 model year vehicles only.

    Using a 5mm shallow socket on top of the bushing and a 15mm shallow socket on the bottom of the selector lever cable end, press the bushing out with straight jaw adjustable pliers.
Ford Fusion. Selector Lever Cable Bushing. Removal and Installation
  1. Visually check the selector lever cable end for any signs of damage and replace if necessary.
Ford Fusion. Selector Lever Cable Bushing. Removal and Installation

Installation

  1. NOTE: Do not use any grease to install the selector lever cable bushing. The selector lever cable bushing must be installed dry.

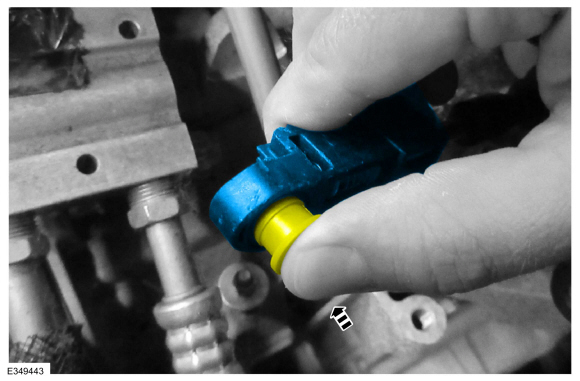

    Using only your hands, install the new selector lever cable bushing.
Ford Fusion. Selector Lever Cable Bushing. Removal and Installation

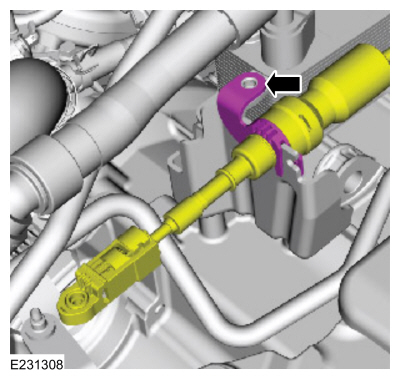

  1. Attach the selector lever cable to the selector lever cable bracket.
Ford Fusion. Selector Lever Cable Bushing. Removal and Installation
  1. Install the selector lever cable retaining clip bolt.
    Torque: 62 lb.in (7 Nm)
Ford Fusion. Selector Lever Cable Bushing. Removal and Installation
  1. Using the diagnostic scan tool, select the cable adjustment mode.
  1. NOTE: S flashes simultaneously with either D or N on the GSM.

    Press D on the GSM.
Ford Fusion. Selector Lever Cable Bushing. Removal and Installation
  1. NOTE: Verify D is illuminated on the IPC.

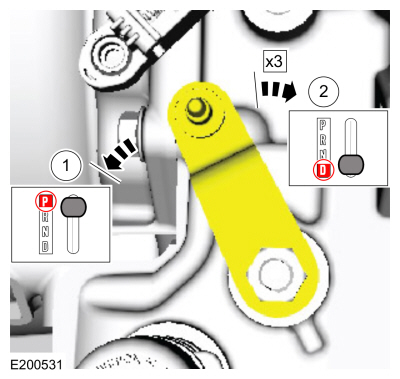

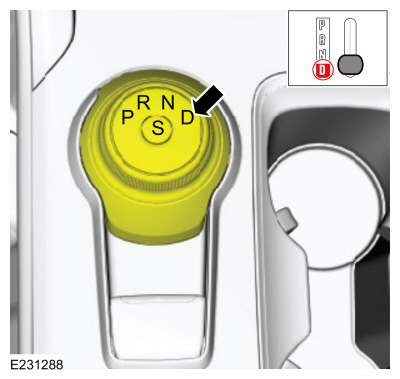

    Position the manual control lever in D.
    1. Rotate the manual control lever counterclockwise until it stops.
    1. Rotate the manual control lever 3 detents into D.
Ford Fusion. Selector Lever Cable Bushing. Removal and Installation

  1. Unlock the adjuster.
    1. Move the slide to the left.
    1. While holding the slide, position the adjuster lock upward.
Ford Fusion. Selector Lever Cable Bushing. Removal and Installation
  1. Connect the selector lever cable to the transmission manual lever.
Ford Fusion. Selector Lever Cable Bushing. Removal and Installation

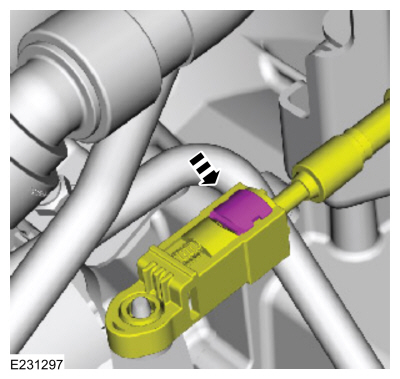

  1. Snap the adjuster lock into place.
Ford Fusion. Selector Lever Cable Bushing. Removal and Installation

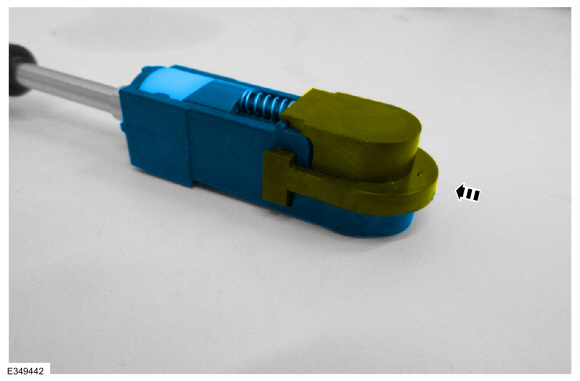

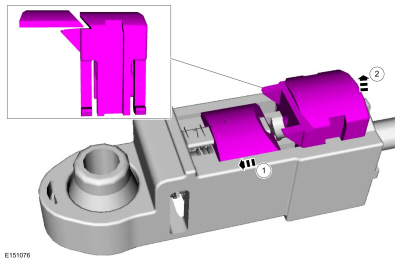

  1. Install the new cap onto the selector lever cable adjuster. Clip one side into the adjuster body and then slide the other onto the housing until it snaps into place. The protective cap should cover the bushing and the terminal end of the adjuster.
Ford Fusion. Selector Lever Cable Bushing. Removal and Installation

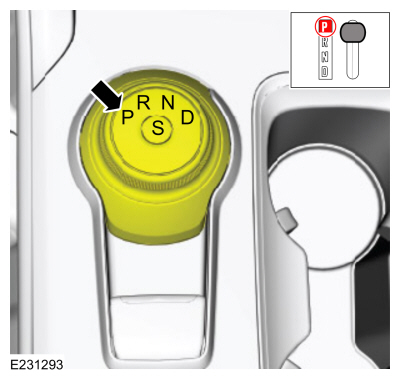

  1. Press P on the GSM.
Ford Fusion. Selector Lever Cable Bushing. Removal and Installation
  1. Clear any DTCs.
  1. Shift the transmission through the ranges starting in P, then R, then N, then D, then N, then R and then back to P.
  1. Check for DTCs.
  1. Disconnect the scan tool.
  1. Install the air cleaner assembly.
    Refer to: Air Cleaner (303-12D Intake Air Distribution and Filtering - 2.7L EcoBoost (238kW/324PS), Removal and Installation).
    Refer to: Air Cleaner (303-12C Intake Air Distribution and Filtering - 2.5L Duratec (125kW/170PS), Removal and Installation).
    Refer to: Air Cleaner (303-12C Intake Air Distribution and Filtering - 2.5L Duratec (125kW/170PS), Removal and Installation).
    Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering - 2.0L EcoBoost (184kW/250PS) – MI4, Removal and Installation).
    Refer to: Air Cleaner (303-12A Intake Air Distribution and Filtering - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).
  1. Verify the vehicle only starts in P and N and the reverse lamps illuminate in R.
