Ford Fusion: Roof Opening Panel / Roof Opening Panel Shield. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Roof Opening Panel / Roof Opening Panel Shield. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. On both sides, remove the A-pillar trim panel.
    Refer to: A-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  1. On both sides, remove the B-pillar trim panel.
    Refer to: B-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  1. On both sides, remove the C-pillar upper trim panel.
    Refer to: C-Pillar Upper Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

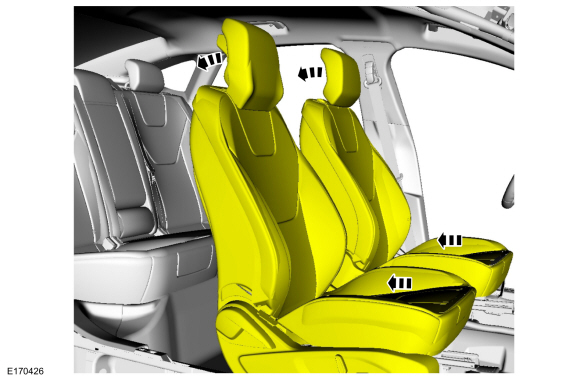

  1. Position both front seats in the full rearward and full reclined position.
Ford Fusion. Roof Opening Panel Shield. Removal and Installation
  1. If equipped.

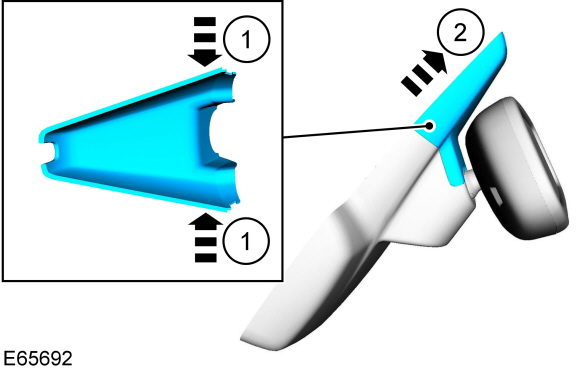

    1. Release the upper rear view mirror cover clips.
    1. Remove the upper rear view mirror cover.
Ford Fusion. Roof Opening Panel Shield. Removal and Installation

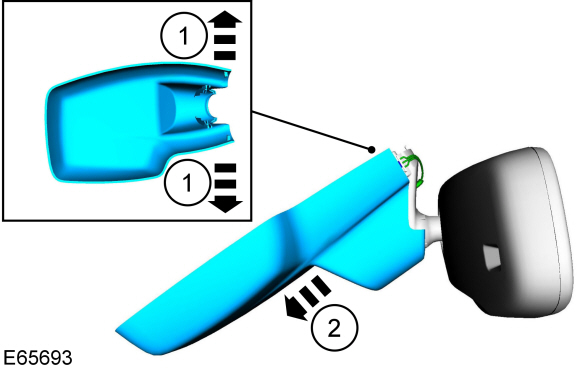

  1. If equipped.
    1. Release the lower rear view mirror cover clips by squeezing on the sides.
    1. Remove the lower rear view mirror cover.
Ford Fusion. Roof Opening Panel Shield. Removal and Installation
  1. If equipped.
    Disconnect the rear view mirror electrical connectors.
Ford Fusion. Roof Opening Panel Shield. Removal and Installation

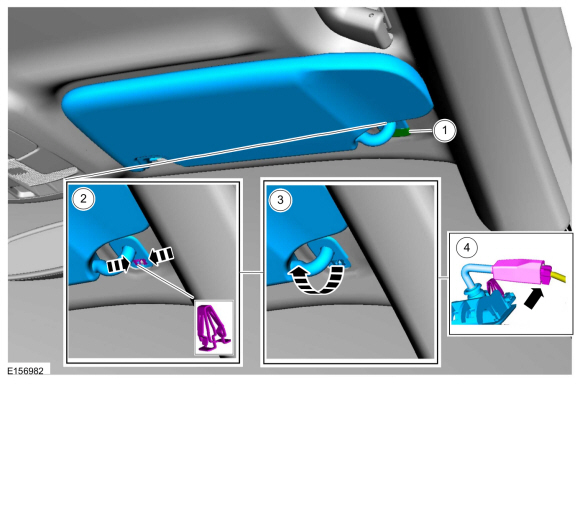

  1. On both sides.
    Remove the sun visors.
    1. Remove the retainer cap.
    1. Release the clip.
    1. Remove the sun visor.
    1. If equipped.
      Disconnect the electrical connector.
Ford Fusion. Roof Opening Panel Shield. Removal and Installation

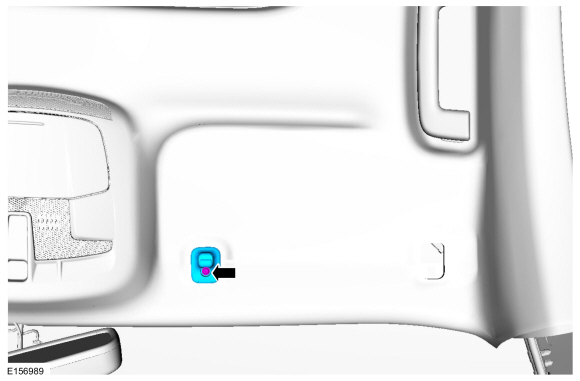

  1. On both sides.
    Remove the retainer and the sun visor clip.
Ford Fusion. Roof Opening Panel Shield. Removal and Installation

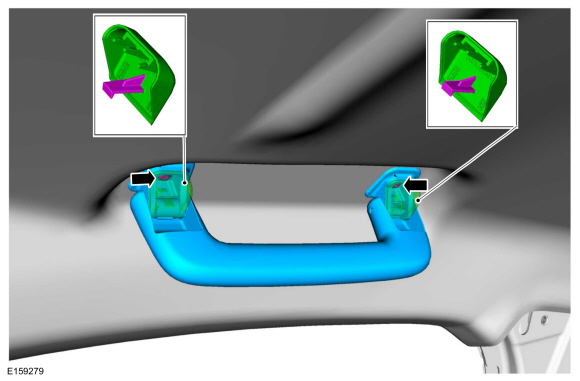

  1. NOTE: LH side shown, RH side similar.

    On both sides.
    Remove the retainer covers, the retainers and the grab handle.
Ford Fusion. Roof Opening Panel Shield. Removal and Installation

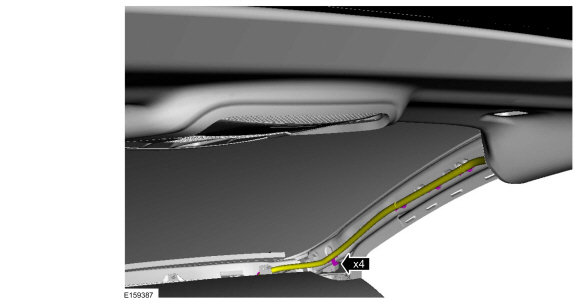

  1. NOTE: Disconnect as necessary to lower the headliner.

    On both sides.
    Detach the wire harness retainers.
Ford Fusion. Roof Opening Panel Shield. Removal and Installation

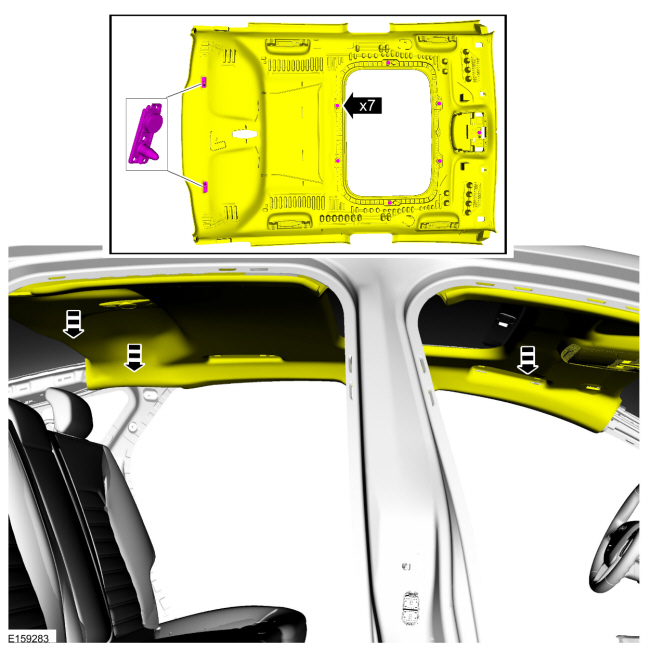

  1. NOTICE: When releasing the magnets around the roof opening panel area, pull down on the plastic headliner reinforcement between the headliner and the roof or damage to the headliner may result.

    Release the seven magnets and two guide pins and magnets.
Ford Fusion. Roof Opening Panel Shield. Removal and Installation

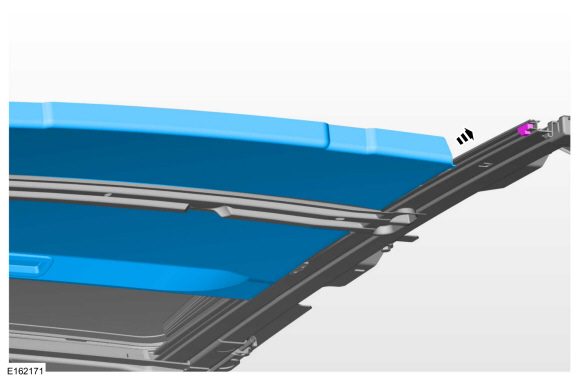

  1. On both sides.
    Remove the retainer, slide the roof opening panel shield rearward and remove the roof opening panel shield out of the guide track.
Ford Fusion. Roof Opening Panel Shield. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
