Ford Fusion: Exhaust System - 1.5L EcoBoost (118kW/160PS) – I4 / Muffler and Tailpipe. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

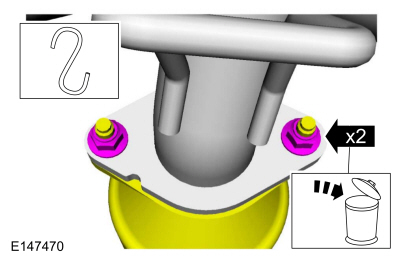

    • Remove and discard the nuts.
      Torque: 35 lb.ft (48 Nm)
    • Position aside the muffler and tailpipe.
Ford Fusion. Muffler and Tailpipe. Removal and Installation

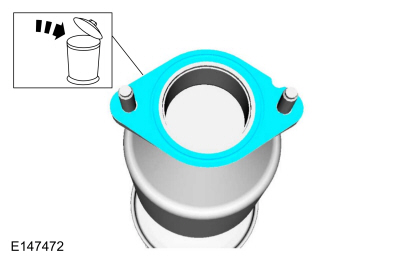

  1. Remove and discard the gasket.
Ford Fusion. Muffler and Tailpipe. Removal and Installation

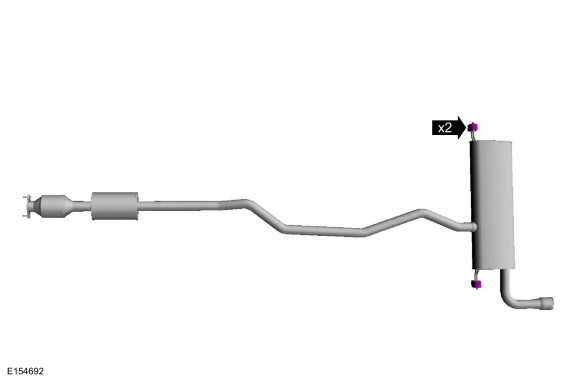

  1. Detach the exhaust isolators hangers and remove the muffler and tailpipe assembly.
Ford Fusion. Muffler and Tailpipe. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
