Ford Fusion: Body Closures / Rear Door. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Body Closures / Rear Door. Removal and Installation

Special Tool(s) / General Equipment

Door Lift

Removal

NOTE: Removal steps in this procedure may contain installation details.

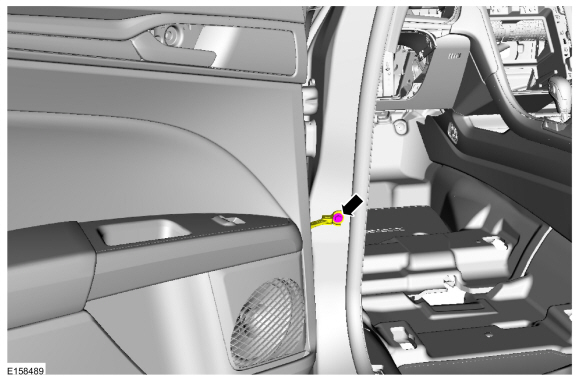

Remove the check arm bolt.
Torque: 18 lb.ft (25 Nm)

Ford Fusion. Rear Door. Removal and Installation

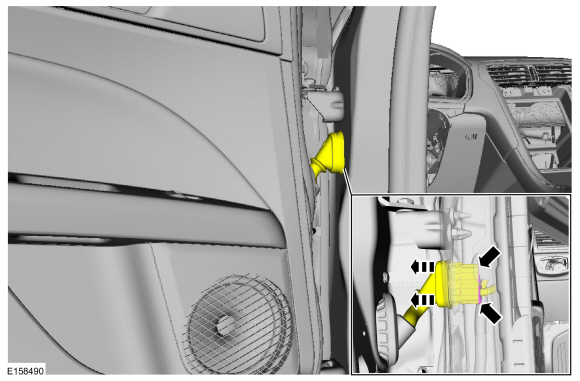

Disconnect the rear door electrical connector.

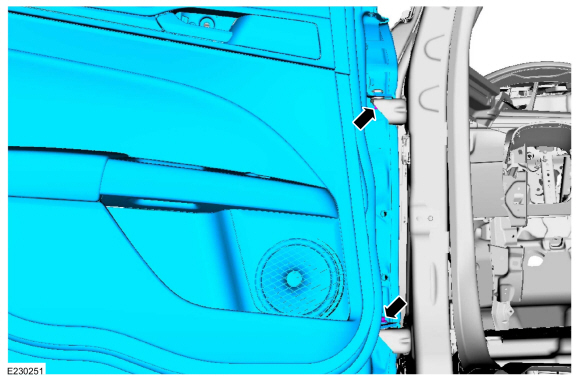

Remove the door hinge pivot bolts and the door.
Use the General Equipment: Door Lift
Torque: 22 lb.ft (30 Nm)

Installation

To install, reverse the removal procedure.

NOTE: This step is only necessary when installing a new component.
Check the alignment and correct if necessary.
Refer to: Rear Door Alignment (501-03 Body Closures, General Procedures).
