Ford Fusion: Parking Aid / Parking Aid Camera - 4-Door. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Electrical / Instrumentation and Warning Systems / Parking Aid / Parking Aid Camera - 4-Door. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Ford Fusion. Parking Aid Camera - 4-Door. Removal and Installation  WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Luggage Compartment Lid Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).
  1. Remove the decklid applique.
    Refer to: Luggage Compartment Lid Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).

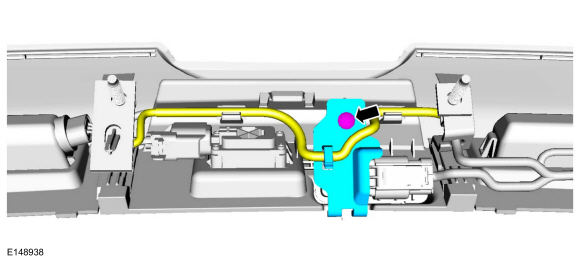

  1. Remove the retainer and the parking aid camera bracket.
Ford Fusion. Parking Aid Camera - 4-Door. Removal and Installation

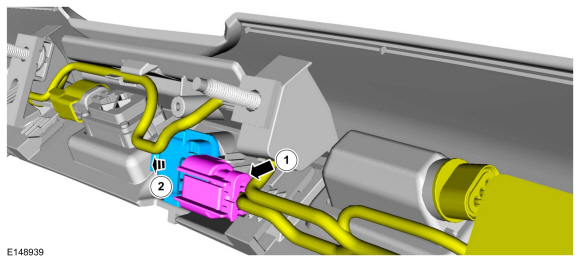

  1. Remove the parking aid camera.
    1. Disconnect the parking aid camera electrical connector.
    1. Remove the parking aid camera.
Ford Fusion. Parking Aid Camera - 4-Door. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
  1. Configure the rear video camera following the instructions on the scan tool located using the following path: Electrical> Service Functions>LIN New Module Initialization.
