Ford Fusion: Information and Entertainment System - General Information - Vehicles With: SYNC 3 / Media Hub - Police. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-

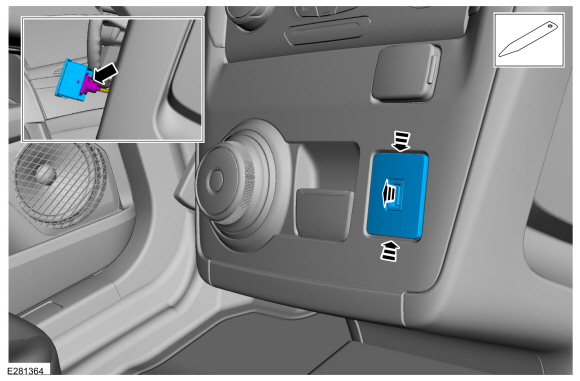

Release the tabs, disconnect the USB\ cable and remove the media hub.
Installation
-
To install, reverse the removal procedure.
Special Tool(s) /
General Equipment
Interior Trim Remover
Removal
NOTE:
Removal steps in this procedure may contain installation details...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the parcel shelf.
Refer to: Parcel Shelf (501-05 Interior Trim and Ornamentation, Removal and Installation)...
Other information:
DTC Chart(s)
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).
SODL and SODR
DTC Chart
DTC
Description
Action
U0100:00
Lost Communication With ECM/PCM "A": No Sub Type Informa..
System Operation
System Diagram - Exterior, Power (Without Memory)
Item
Description
1
DDM
2
PDM
3
Motors
4
LH exterior mirror
5
Exterior mirror control switch
6
LH front door window control switch
7
Motors
8
RH exterior mirror
Network Message Chart
Module Network Input Messages — PDM
..
