Ford Fusion: Electronic Engine Controls - 1.5L EcoBoost (118kW/160PS) – I4 / Fuel Rail Pressure (FRP) Sensor. Removal and Installation

Materials

Name Specification
Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil
XO-5W20-Q1SP
WSS-M2C945-B1


Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 1.5L EcoBoost (118kW/160PS) – I4, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
  1. NOTE: Make sure that a new component is installed.

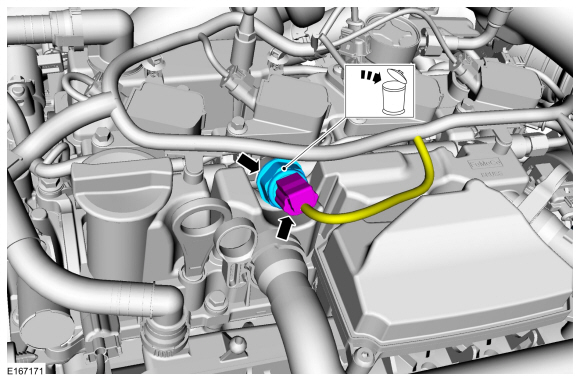

    Disconnect the FRP sensor electrical connector and remove the FRP sensor.
    Torque: 24 lb.ft (32.5 Nm)
Ford Fusion. Fuel Rail Pressure (FRP) Sensor. Removal and Installation

Installation

  1. To install, reverse the removal procedure.

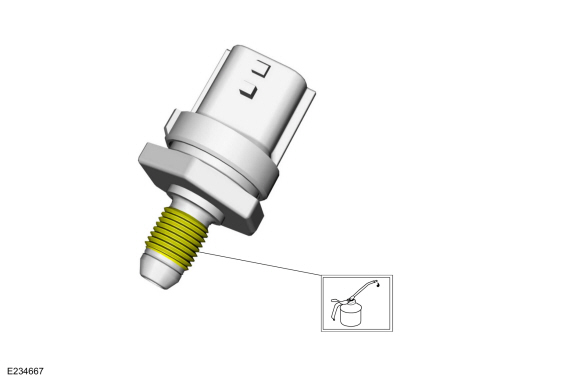

  1. Lubricate the sensor threads.
    Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)
