Ford Fusion: Electronic Engine Controls - 1.5L EcoBoost (118kW/160PS) – I4 / Manifold Absolute Pressure and Temperature (MAPT) Sensor. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Powertrain / Engine / Electronic Engine Controls - 1.5L EcoBoost (118kW/160PS) – I4 / Manifold Absolute Pressure and Temperature (MAPT) Sensor. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

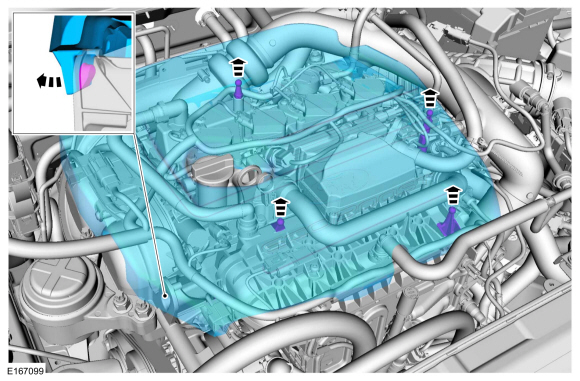

  1. Remove the engine appearance cover.
Ford Fusion. Manifold Absolute Pressure and Temperature (MAPT) Sensor. Removal and Installation
  1. Disconnect the electrical connector, remove the retainer and the MAPT sensor.
    Torque: 44 lb.in (5 Nm)
Ford Fusion. Manifold Absolute Pressure and Temperature (MAPT) Sensor. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
