Ford Fusion: Exterior Lighting / Light Emitting Diode (LED) Control Module. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Electrical / Lighting / Exterior Lighting / Light Emitting Diode (LED) Control Module. Removal and Installation

Removal

All vehicles

  1. Remove the headlamp assembly.
    Refer to: Headlamp Assembly (417-01 Exterior Lighting, Removal and Installation).

Vehicles with Light Emitting Diode headlamps

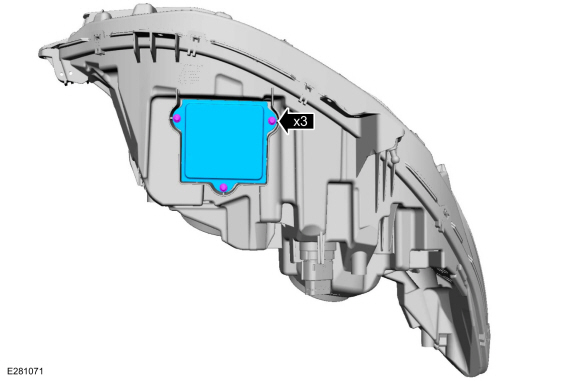

  1. Remove the screws and the LED control module.
Ford Fusion. Light Emitting Diode (LED) Control Module. Removal and Installation

Vehicles with Halogen Light Emitting Diode enhanced headlamps

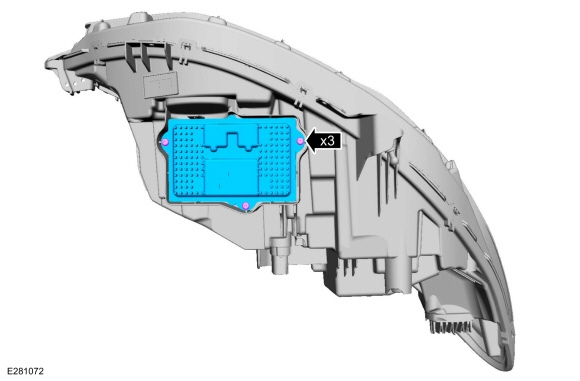

  1. Remove the screws and the LED control module.
Ford Fusion. Light Emitting Diode (LED) Control Module. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
