Ford Fusion: Exterior Lighting / Light Sensor. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Electrical / Lighting / Exterior Lighting / Light Sensor. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

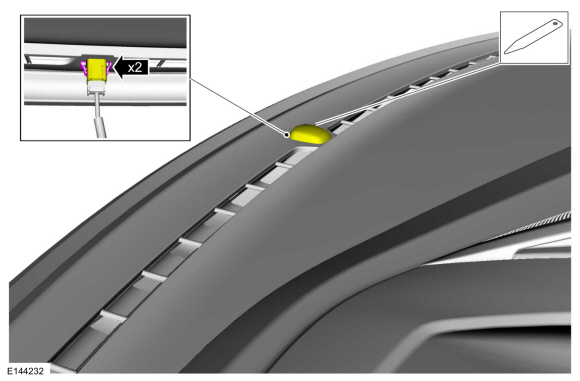

  1. Using a non-marring tool release the light sensor and position it up.
Ford Fusion. Light Sensor. Removal and Installation

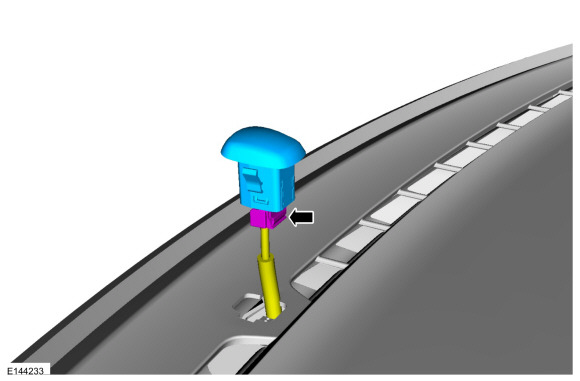

  1. Disconnect the light sensor electrical connector.
Ford Fusion. Light Sensor. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
