Ford Fusion: Exterior Lighting / Reversing Lamp. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Electrical / Lighting / Exterior Lighting / Reversing Lamp. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Reversing lamp assembly

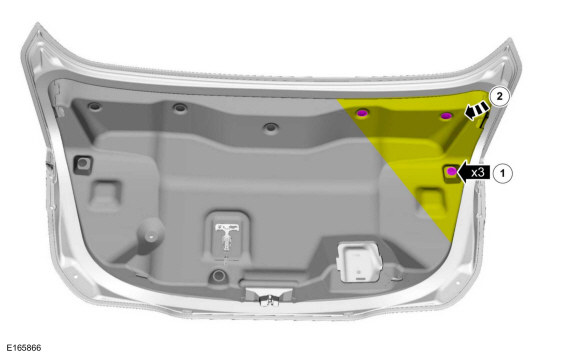

    1. Remove the push pins.
    1. Position aside the liftgate trim panel.
Ford Fusion. Reversing Lamp. Removal and Installation

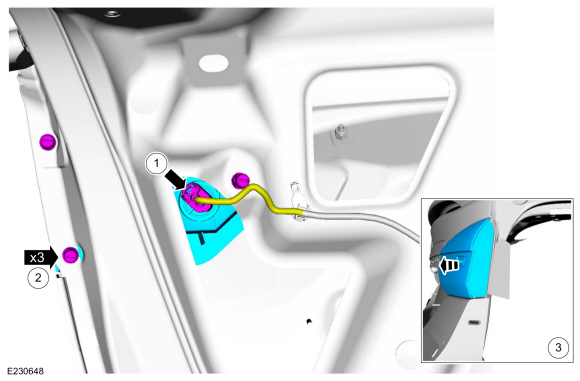

  1. Remove the rear lamp assembly.
    1. Disconnect the rear lamp assembly electrical connector.
    1. Remove the retainers.
    1. Remove the rear lamp assembly.
Ford Fusion. Reversing Lamp. Removal and Installation

Reversing lamp bulb

    1. Remove the push pins.
    1. Position aside the liftgate trim panel.
Ford Fusion. Reversing Lamp. Removal and Installation

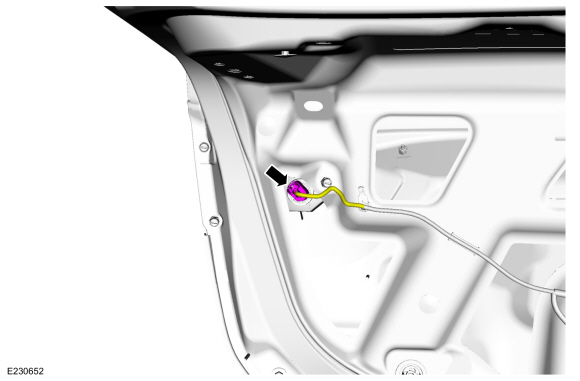

  1. Disconnect the reversing lamp electrical connector.
Ford Fusion. Reversing Lamp. Removal and Installation

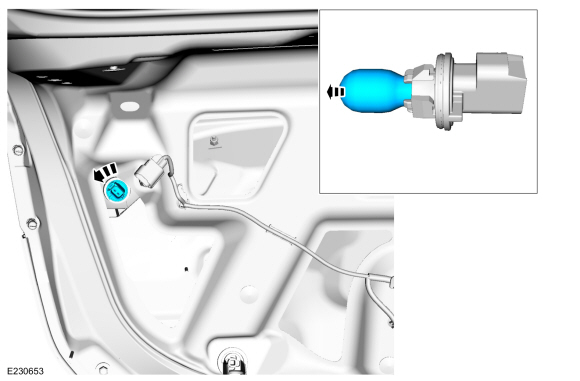

  1. Remove the bulb holder and separate the reversing lamp bulb.
Ford Fusion. Reversing Lamp. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
