Ford Fusion: Maintenance / Changing a Bulb

WARNING: Switch the lamps and the ignition off. Failure to follow this warning could result in serious personal injury.

WARNING: Bulbs can become hot. Let the bulb cool down before removing it. Failure to do so could result in personal injury.

Use the correct specification bulb.

Install in the reverse order unless otherwise stated.

Headlamp

Ford Fusion. Changing a Bulb

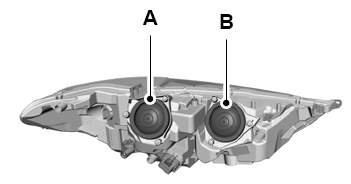

  1. Headlamp high beam.
  2. Headlamp low beam.

Note: LED headlamps are not serviceable. Have your vehicle checked as soon as possible.

Headlamp Low Beam

  1. Carefully remove the cover.
  2. Disconnect the electrical connector.
  3. Turn the bulb holder counterclockwise and remove it.

Note: Do not touch the bulb glass.

Note: You cannot separate the bulb from the bulb holder.

Headlamp High Beam

  1. Carefully remove the cover.
  2. Disconnect the electrical connector.
  3. Turn the bulb holder counterclockwise and remove it.

Note: Do not touch the bulb glass.

Note: You cannot separate the bulb from the bulb holder.

Front Halogen Fog Lamp

Ford Fusion. Changing a Bulb

Note: You cannot separate the fog lamp bulb from the bulb holder.

Note: Use caution when removing fog lamp facia cover from breaking or scratching.

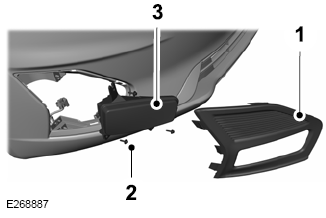

  1. Remove the fog lamp cover, using a flat screwdriver.
  2. Remove the three fasteners using a screwdriver.
  3. Remove the lamp.

    Ford Fusion. Changing a Bulb

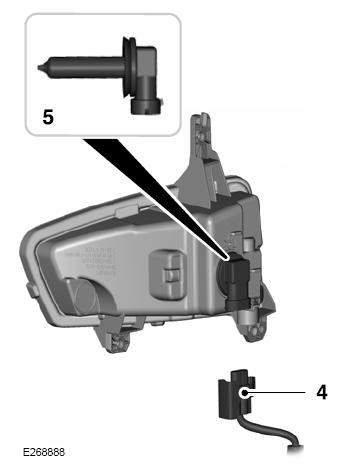

  4. Disconnect the electrical connector.
  5. Turn the bulb holder counterclockwise and remove it.
  6. Install the new bulb in reverse order.

LED Lamps

LED lamps are not serviceable. Have your vehicle checked as soon as possible.

The following lamps can be LED:

  • Front side marker lamps.
  • Front direction indicators.
  • Daytime running lamps.
  • Side direction indicators.
  • Central high mounted brake lamp.
  • Rear direction indicators.
  • Brake and rear lamps.
  • Front fog lamp.

Reversing Lamp

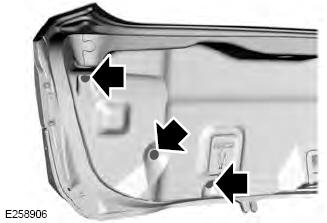

1. Carefully remove the plastic trim clips holding the interior cover.

Ford Fusion. Changing a Bulb

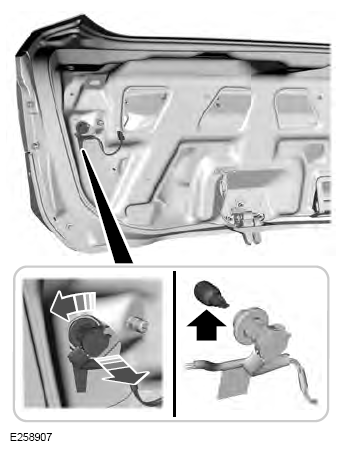

2. Turn the bulb holder counterclockwise and remove it.

Ford Fusion. Changing a Bulb

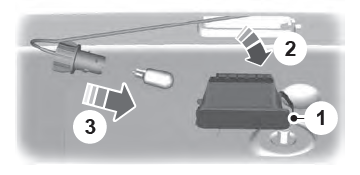

  1. Press the bulb in and turn the bulb counterclockwise to remove it.

License Plate Lamp

Ford Fusion. Changing a Bulb

  1. Use a suitable tool, for example a screwdriver, to carefully remove the lamp.
  2. Remove the lamp.
  3. Turn the bulb holder counterclockwise and remove it.
  4. Remove the bulb by pulling it straight out.

    Removing a Headlamp

    Note: To remove push pins, use a flat-bladed screwdriver to pull up the center release pin. Make sure the headlamp control is in the off position and open the hood...
