Ford Fusion 2013–2020 Service Manual / Electrical / Lighting / Exterior Lighting / High Mounted Stoplamp. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

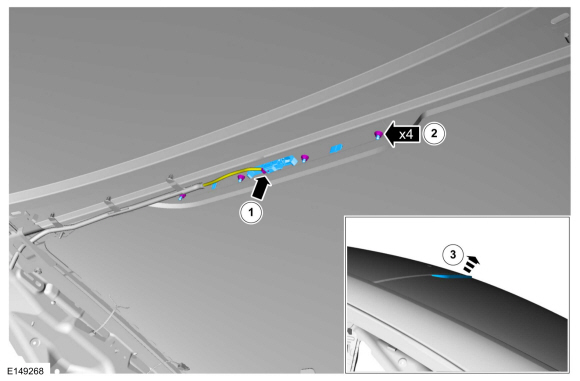

  1. Partially lower the headliner.

  1. Remove the high mounted stoplamp.
    1. Disconnect the high mounted stoplamp electrical connector.
    1. Remove the nuts.
    1. Separate the high mounted stoplamp from the roof panel.
Ford Fusion. High Mounted Stoplamp. Removal and Installation

Installation

  1. NOTE: Clean adhesive tape from roof panel.

    To install, reverse the removal procedure.
