Ford Fusion: Information and Entertainment System - General Information - Vehicles With: SYNC 3 / Information and Entertainment System - Component Location. Description and Operation

NOTE: The available speaker configurations are shown first. The remaining hidden audio/SYNC system components and various cable routings follow the speaker configurations.

NOTE: Some vehicles may not be equipped with all the optional components shown.

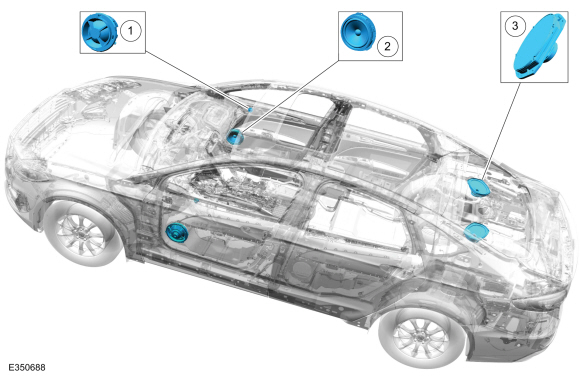

4 and 5 Speaker System - Police

Ford Fusion. Information and Entertainment System - Component Location. Description and Operation
Item Description
1 Left/right front door tweeter speakers
2 Left/right front door woofer speakers
3 Left/right parcel shelf speaker (only one is typically equipped)

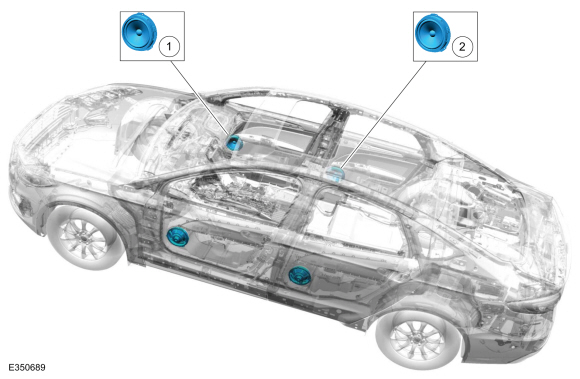

4 Speaker System

Ford Fusion. Information and Entertainment System - Component Location. Description and Operation
Item Description
1 Left/right front door woofer speakers
2 Left/right rear door woofer speakers

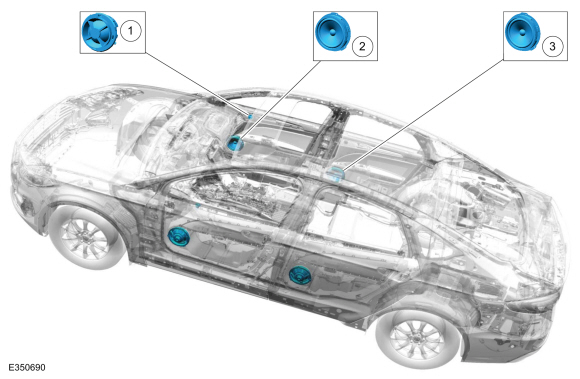

6 Speaker System

Ford Fusion. Information and Entertainment System - Component Location. Description and Operation
Item Description
1 Left/right front door tweeter speakers
2 Left/right front door woofer speakers
3 Left/right rear door woofer speakers

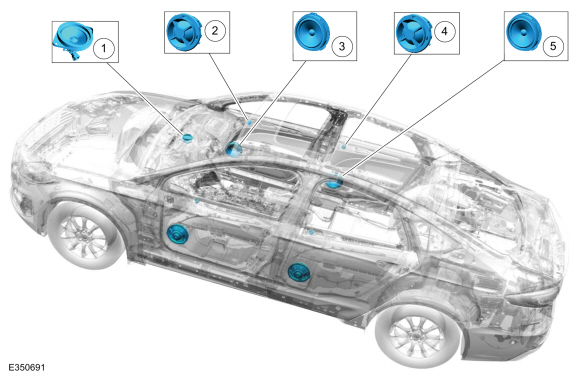

9 Speaker System

Ford Fusion. Information and Entertainment System - Component Location. Description and Operation
Item Description
1 Instrument panel center speaker
2 Left/right front door tweeter speakers
3 Left/right front door woofer speakers
4 Left/right rear door tweeter speakers
5 Left/right rear door woofer speakers

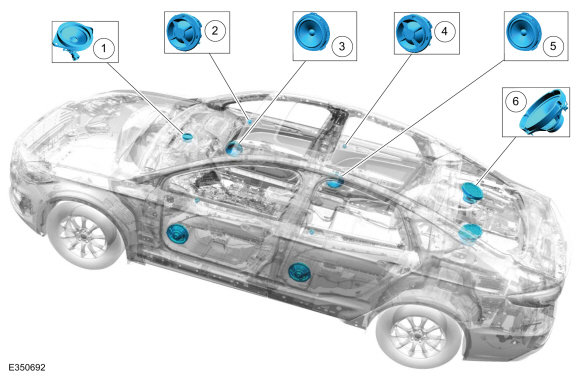

11 Speaker System

Ford Fusion. Information and Entertainment System - Component Location. Description and Operation
Item Description
1 Instrument panel center speaker
2 Left/right front door tweeter speakers
3 Left/right front door woofer speakers
4 Left/right rear door tweeter speakers
5 Left/right rear door woofer speakers
6 Left/right subwoofer speakers

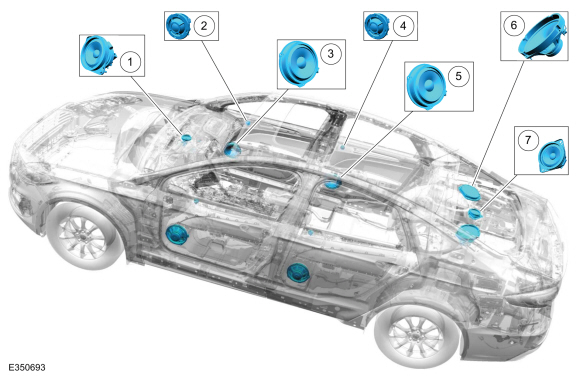

12 Speaker System

Ford Fusion. Information and Entertainment System - Component Location. Description and Operation
Item Description
1 Instrument panel center speaker
2 Left/right front door tweeter speakers
3 Left/right front door woofer speakers
4 Left/right rear door tweeter speakers
5 Left/right rear door woofer speakers
6 Left/right subwoofer speakers
7 Parcel shelf center speaker

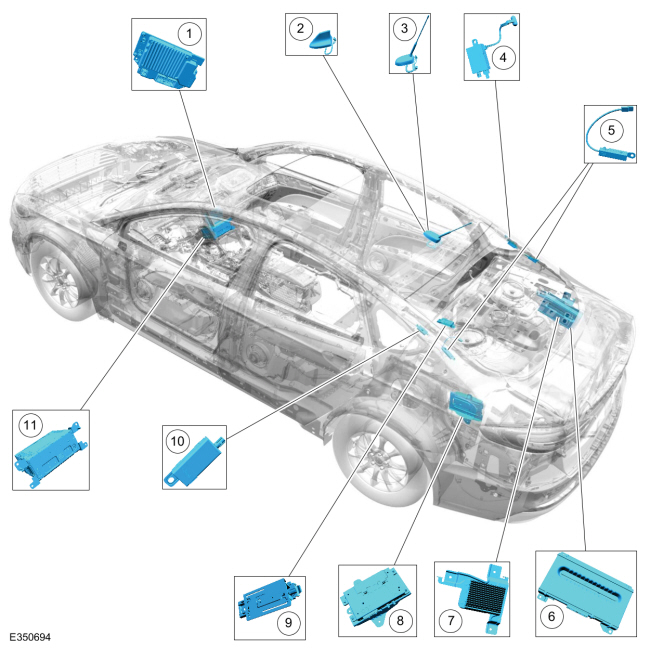

Audio/SYNC System Hidden Components

Ford Fusion. Information and Entertainment System - Component Location. Description and Operation
Item Description
1 APIM
2 GPS/satellite radio/primary cellular antenna (vehicles equipped with vehicle Wi-Fi)
3 AM/ FM1/ GPS/satellite radio antenna (vehicles not equipped with vehicle Wi-Fi)
4 AM/ FM1 antenna amplifier (vehicles equipped with vehicle Wi-Fi)
5 Left/right noise filters
6 DSP
7 Subwoofer amplifier
8 TCU
9 Secondary cellular antenna
10 FM2 antenna amplifier
11 ACM

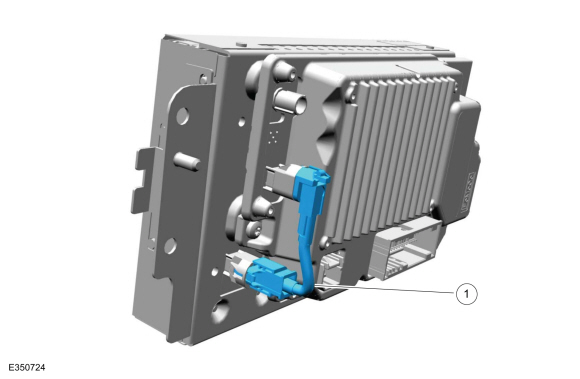

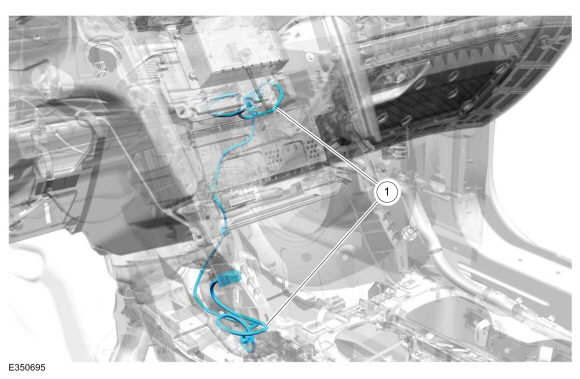

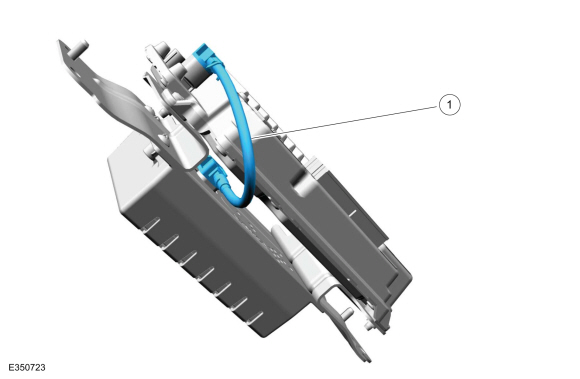

LVDS Cable Routing - Non-Touchscreen

Ford Fusion. Information and Entertainment System - Component Location. Description and Operation
Item Description
1 LVDS cable

LVDS Cable Routing - Touchscreen

Ford Fusion. Information and Entertainment System - Component Location. Description and Operation
Item Description
1 LVDS cable

USB Cable Routing - Non-Touchscreen

Ford Fusion. Information and Entertainment System - Component Location. Description and Operation
Item Description
1 USB cable

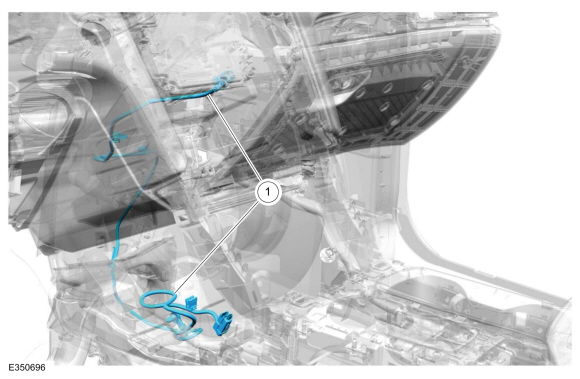

Primary USB Cable Routing - Touchscreen

Ford Fusion. Information and Entertainment System - Component Location. Description and Operation
Item Description
1 Primary USB cable

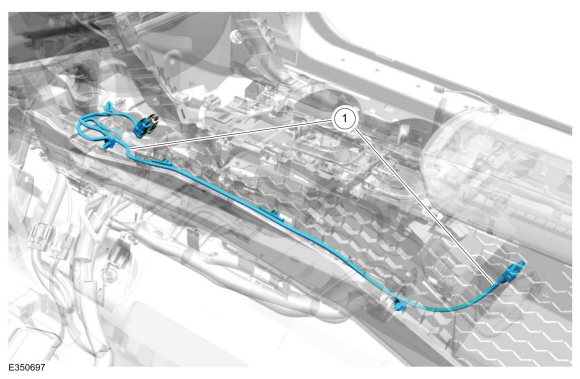

Secondary USB Cable Routing - Touchscreen

Ford Fusion. Information and Entertainment System - Component Location. Description and Operation
Item Description
1 Secondary USB cable

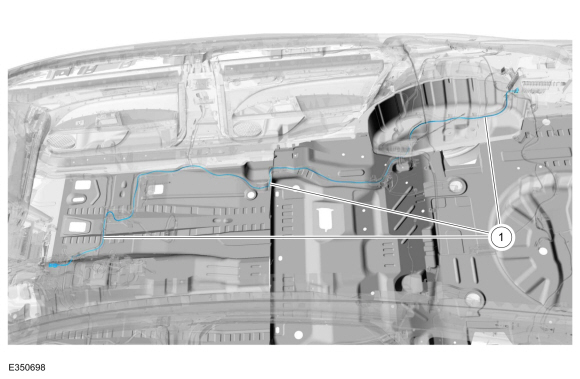

Rear Automobile Audio Bus (A2B) Cable Routing

Ford Fusion. Information and Entertainment System - Component Location. Description and Operation
Item Description
1 Rear Automobile Audio Bus (A2B) cable

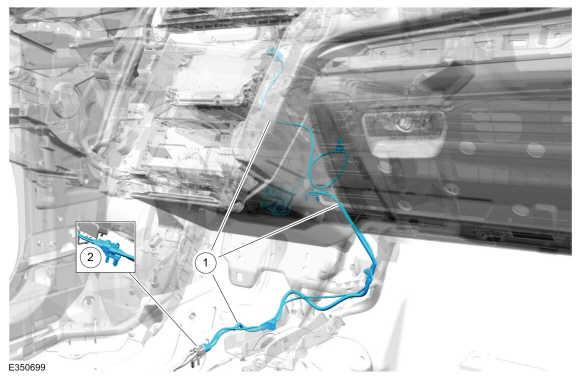

Front AM/ FM1/ GPS/Satellite Radio Antenna Cable Routing

Ford Fusion. Information and Entertainment System - Component Location. Description and Operation
Item Description
1 Front AM/ FM1/ GPS/satellite radio antenna cable
2 AM/ FM1/ GPS/satellite radio antenna cable in-line connection

Rear AM/ FM1/ GPS/Satellite Radio/Primary Cellular Antenna Cable Routing

Ford Fusion. Information and Entertainment System - Component Location. Description and Operation
Item Description
1 Rear AM/ FM1/ GPS/satellite radio/primary cellular antenna cable
2 Primary cellular antenna cable
3 AM/ FM1/ GPS/satellite radio antenna cable in-line connection
4 Primary cellular antenna cable connection to the TCU
5 AM/ FM1 antenna cable connection to the AM/ FM1 antenna amplifier
6 AM/ FM1/ GPS/satellite radio/primary cellular antenna cable connection to the roof mounted antenna

    Specifications

      Torque Specifications Item Nm lb-ft lb-in ACM bolts 2.5 - 22 Antenna bolt 7 - 62 APIM screws 1 - 9 DACMC bolts 6 - 53 DSP bolts 6 - 53 FCIM bolts 2...

    Information and Entertainment System - System Operation and Component Description. Description and Operation

    System Operation System Diagrams Audio System *.sttxt { visibility: hidden; } *.stcallout { visibility: visible; } E350726 1 Roof Mounted Antenna 2 APIM 3 BCM 4 ACM 5 DSP ..
