Ford Fusion: Handles, Locks, Latches and Entry Systems / Hood Latch Release Handle. Removal and Installation
Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Handles, Locks, Latches and Entry Systems / Hood Latch Release Handle. Removal and Installation
Removal
-

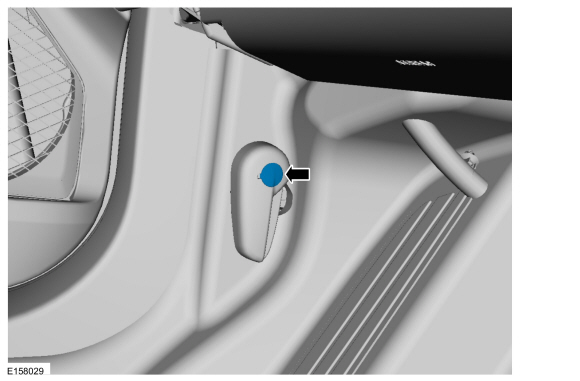

Remove the hood latch release handle access cover.
 |
-
NOTE: Insert a 10mm 1/4 inch drive socket to release the clips.
-

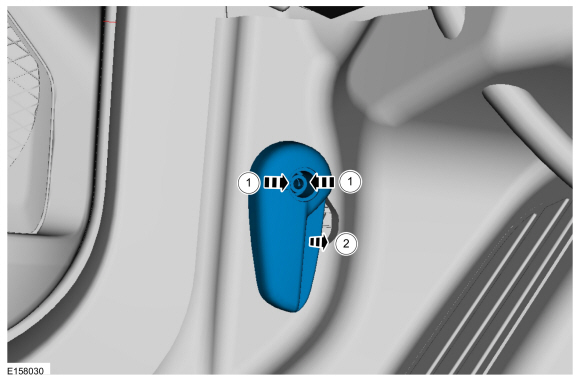

Release the hood latch release handle retaining clips.
-
Remove the hood latch release handle.
-
Release the hood latch release handle retaining clips.
 |
Installation
-
To install, reverse the removal procedure.
