Ford Fusion: Steering Wheel and Column Electrical Components / Heated Steering Wheel Module (HSWM). Removal and Installation

Ford Fusion 2013–2020 Service Manual / Chassis / Steering System / Steering Wheel and Column Electrical Components / Heated Steering Wheel Module (HSWM). Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. NOTE: This step is only necessary when installing a new component.

    NOTE: The PMI process must begin with the current HSWM installed. If the current HSWM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

    Using a diagnostic scan tool, begin the PMI process for the HSWM following the on-screen instructions.
  1. Remove the driver knee airbag.
    Refer to: Driver Knee Airbag (501-20B Supplemental Restraint System, Removal and Installation).

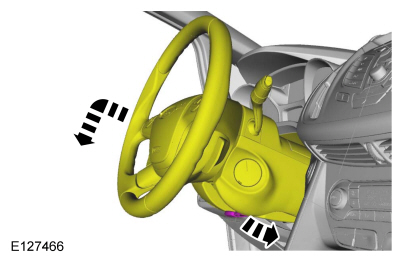

  1. Position the steering column in the full forward/down position.
Ford Fusion. Heated Steering Wheel Module (HSWM). Removal and Installation

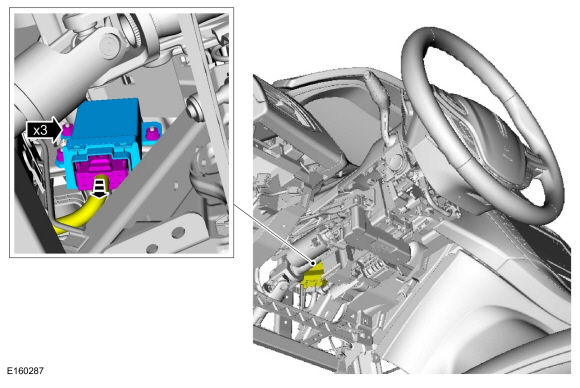

    • Disconnect the electrical connector.
    • Remove the bolts and the HSWM.
      Torque: 22 lb.in (2.5 Nm)
Ford Fusion. Heated Steering Wheel Module (HSWM). Removal and Installation

Installation

  1. To install, reverse the removal procedure.
  1. NOTE: This step is only necessary when installing a new component.

    Using a diagnostic scan tool, complete the PMI process for the HSWM following the on-screen instructions.
