Ford Fusion: Fuel Charging and Controls - 1.5L EcoBoost (118kW/160PS) – I4 / Fuel Pump Driver Module (FPDM). Removal and Installation
Ford Fusion 2013–2020 Service Manual / Powertrain / Engine / Fuel Charging and Controls - 1.5L EcoBoost (118kW/160PS) – I4 / Fuel Pump Driver Module (FPDM). Removal and Installation
Removal
NOTE: The fuel pump driver module is located behind the left C-pillar lower trim panel.
-
Remove the left C-pillar lower trim panel.
Refer to: C-Pillar Lower Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-
-

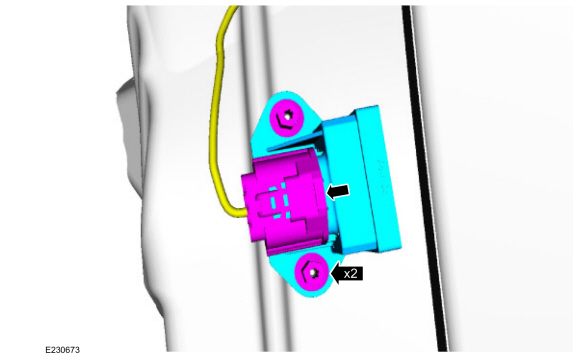

Disconnect the fuel pump driver module electrical connector.
-
Remove the fuel pump driver module retaining nuts, then remove the fuel pump driver module.
-
Disconnect the fuel pump driver module electrical connector.
 |
Installation
-
-
Install the fuel pump driver module, then install and tighten the fuel pump driver module retaining nuts.
Torque: 13 lb.in (1.5 Nm)
-
Connect the fuel pump driver module electrical connector.
-
Install the fuel pump driver module, then install and tighten the fuel pump driver module retaining nuts.
 |
-
Install the left C-pillar lower trim panel.
Refer to: C-Pillar Lower Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
