Ford Fusion: Fuses / Fuse Specification Chart

Ford Fusion 2013–2020 Owners Manual / Fuses / Fuse Specification Chart

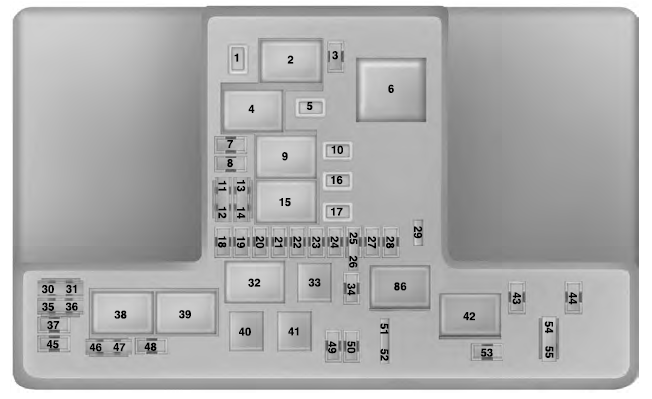

Power Distribution Box

WARNING: Always disconnect the battery before servicing high current fuses.

WARNING: To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.

The power distribution box is in the engine compartment. It has high-current fuses that protect your vehicle's main electrical systems from overloads.

If the battery has been disconnected and reconnected, some features will need to be reset.

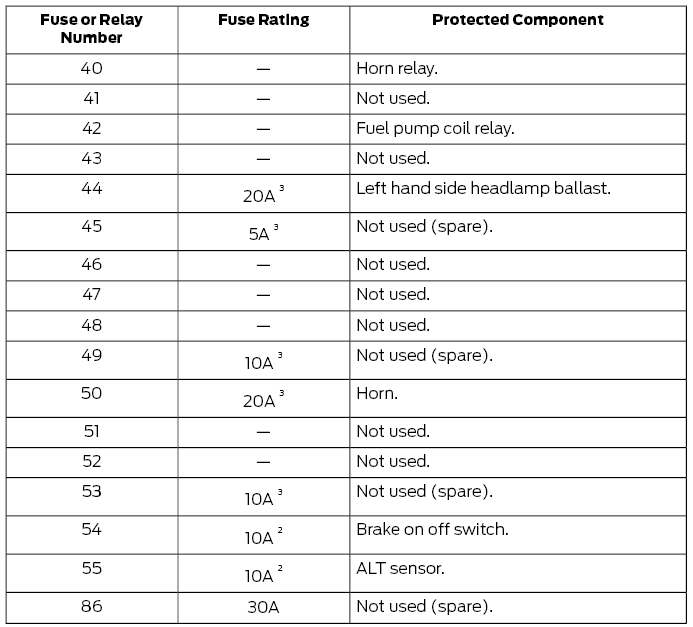

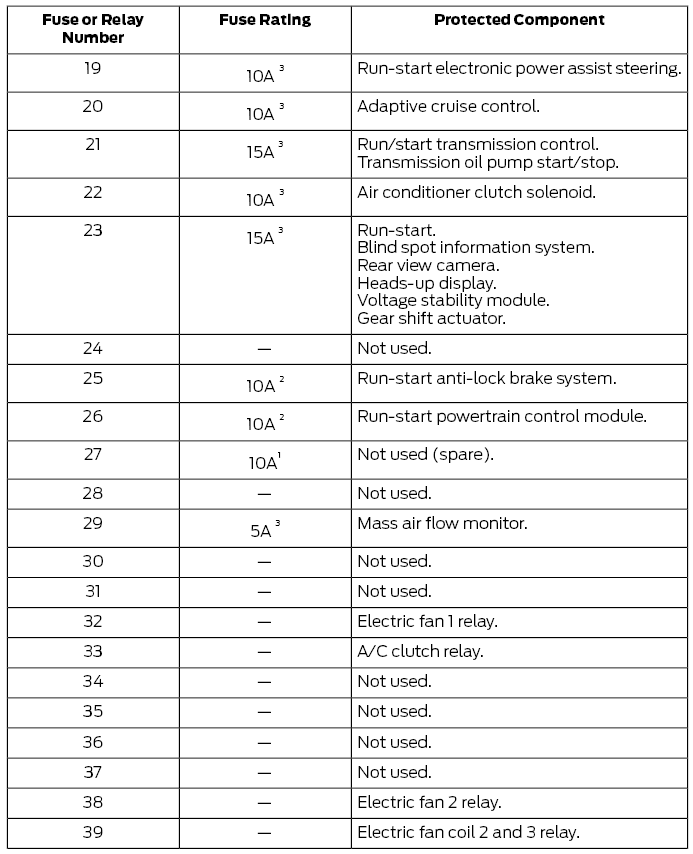

Ford Fusion. Fuse Specification Chart

Ford Fusion. Fuse Specification Chart

Ford Fusion. Fuse Specification Chart

Ford Fusion. Fuse Specification Chart

1 Micro 2 fuse.

2 Micro 3 fuse.

3 M case fuse.

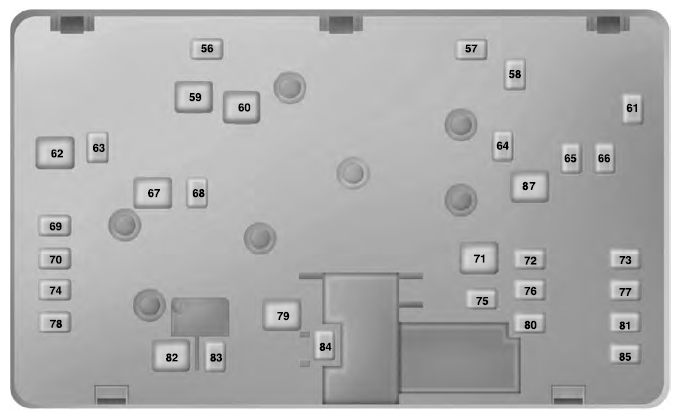

Power Distribution Box - Bottom

There are fuses on the bottom of the fuse box. To access the bottom of the fuse box, do the following:

Ford Fusion. Fuse Specification Chart

  1. Release the two latches, on both sides of the fuse box.
  2. Raise the inboard side of the fuse box from the cradle.
  3. Move the fuse box toward the center of the engine compartment.
  4. Pivot the outboard side of the fuse box to access the bottom side.

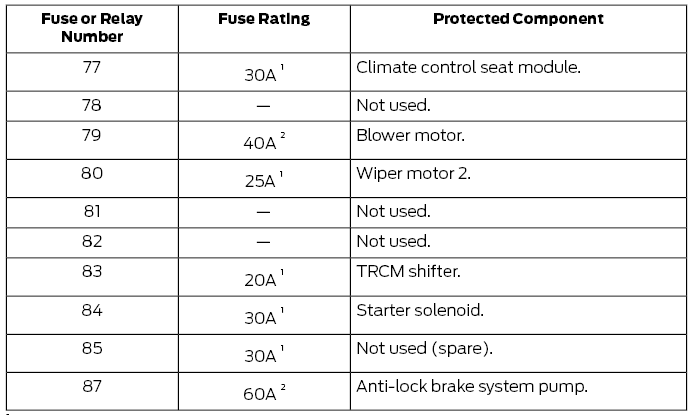

Ford Fusion. Fuse Specification Chart

Ford Fusion. Fuse Specification Chart

Ford Fusion. Fuse Specification Chart

1 M case fuse.

2 J case fuse.

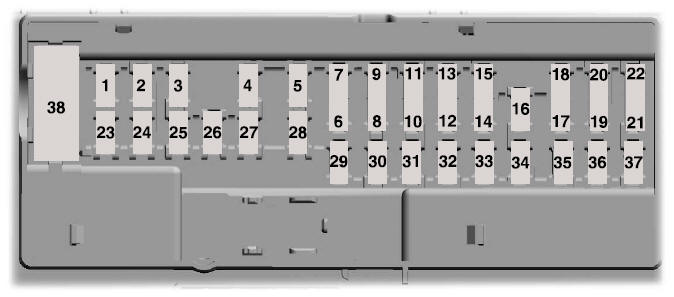

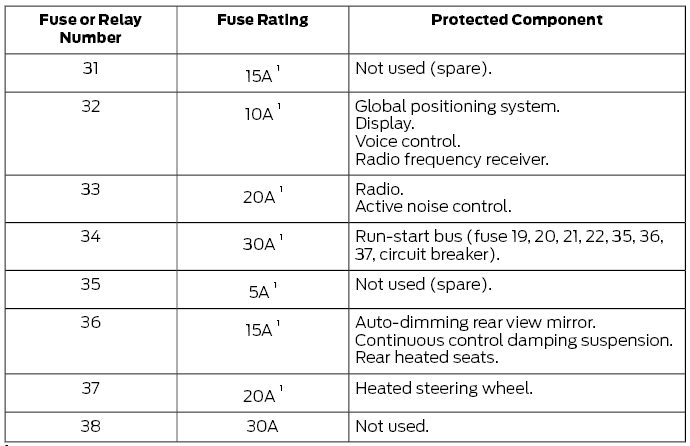

Passenger Compartment Fuse Panel

The fuse panel is under the instrument panel to the left of the steering column.

Note: It may be easier to access the fuse panel if you remove the finish trim piece.

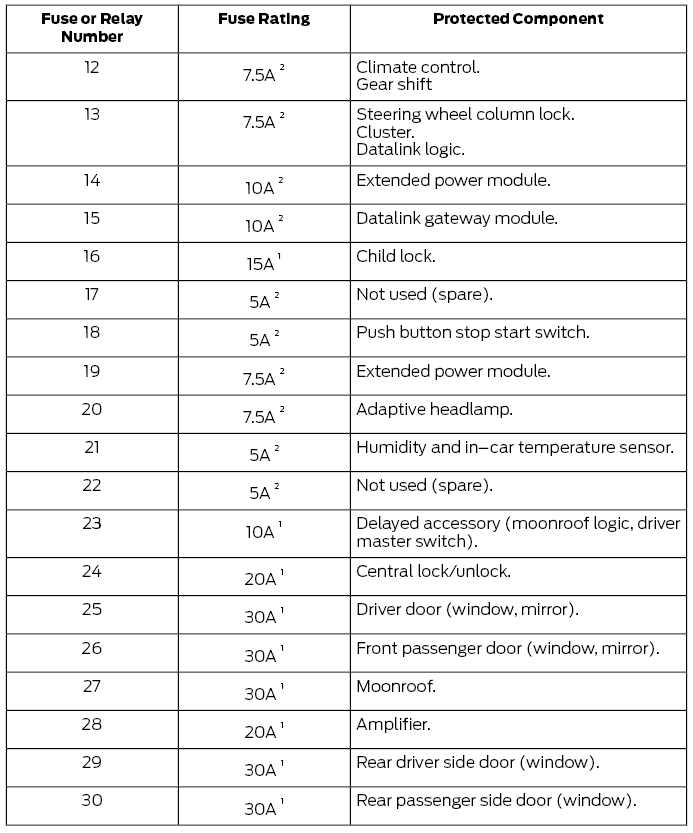

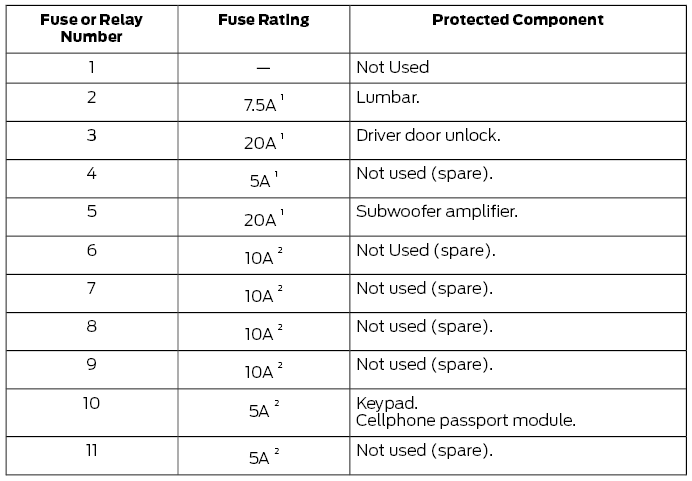

Ford Fusion. Fuse Specification Chart

Ford Fusion. Fuse Specification Chart

Ford Fusion. Fuse Specification Chart

Ford Fusion. Fuse Specification Chart

1 Micro 2 fuse.

2 Micro 3 fuse.

    Fuses

    ..

    Changing a Fuse

    Fuses WARNING: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire...
