Ford Fusion: Front End Body Panels / Fender. Removal and Installation

Removal

NOTE: LH shown, RH similar.

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the fender splash shield.
    Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
  1. Remove the fender insulation.
Ford Fusion. Fender. Removal and Installation

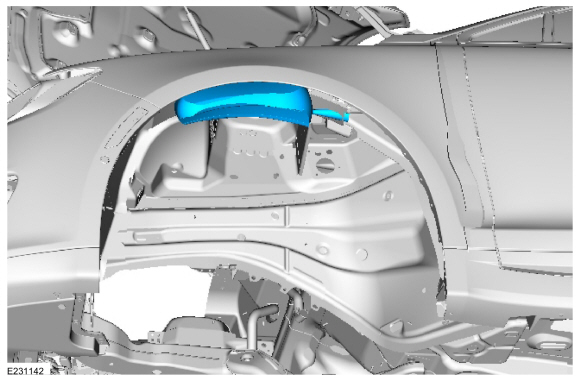

  1. Remove the fender baffle.
Ford Fusion. Fender. Removal and Installation
  1. Remove the rocker panel moulding.
    Refer to: Rocker Panel Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).
  1. Remove the bolt.
    Torque: 80 lb.in (9 Nm)
Ford Fusion. Fender. Removal and Installation

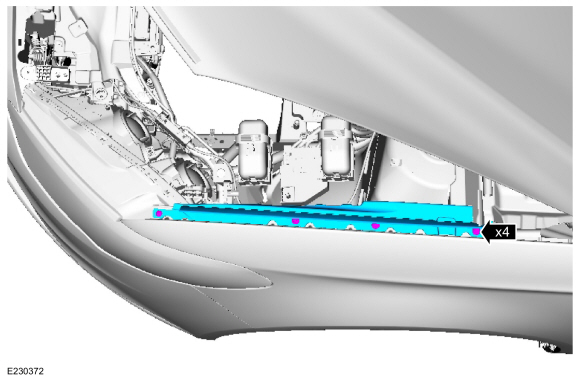

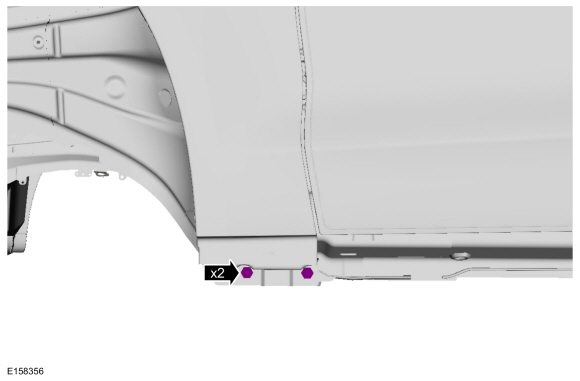

  1. Remove the bolts.
    Torque: 80 lb.in (9 Nm)
Ford Fusion. Fender. Removal and Installation

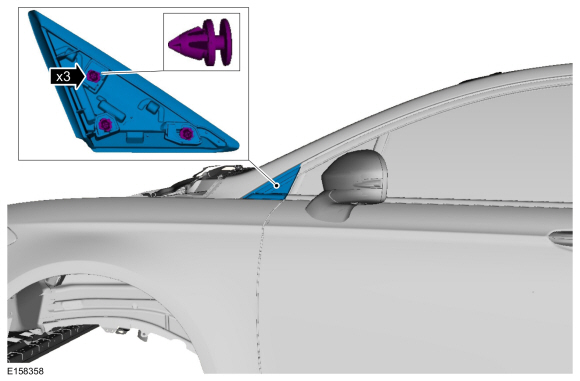

  1. Release the retainers and remove the door frame moulding.
Ford Fusion. Fender. Removal and Installation

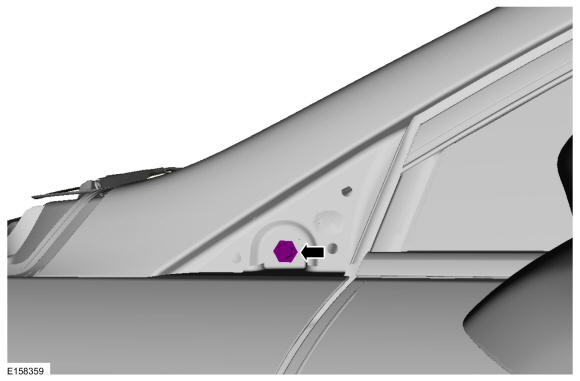

  1. Remove the bolt.
    Torque: 80 lb.in (9 Nm)
Ford Fusion. Fender. Removal and Installation

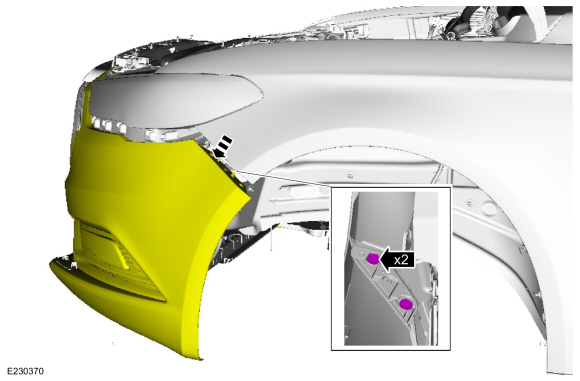

  1. Remove the fender-to-bumper cover bolts and position the bumper cover down.
    Torque: 53 lb.in (6 Nm)
Ford Fusion. Fender. Removal and Installation

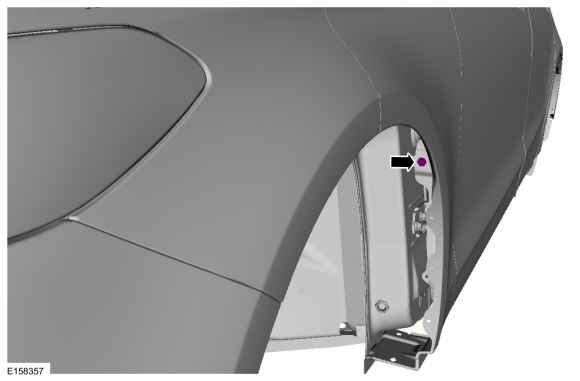

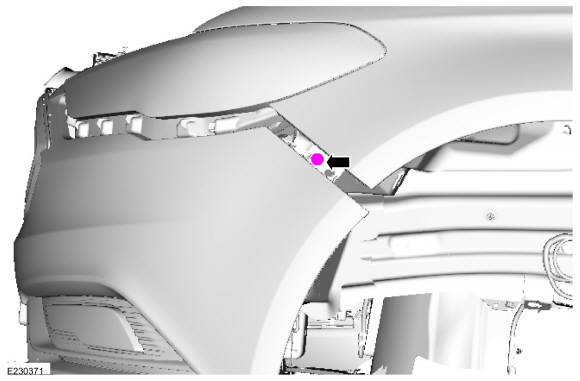

  1. Remove the front fender bracket bolt.
    Torque: 80 lb.in (9 Nm)
Ford Fusion. Fender. Removal and Installation
  1. Remove the pin-type retainers and the cowl filler panel.
Ford Fusion. Fender. Removal and Installation

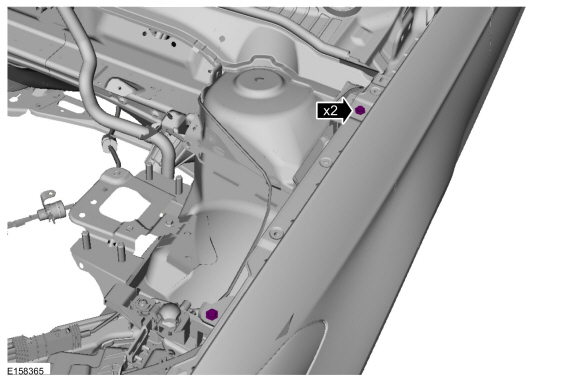

  1. Remove the bolts.
    Torque: 80 lb.in (9 Nm)
Ford Fusion. Fender. Removal and Installation

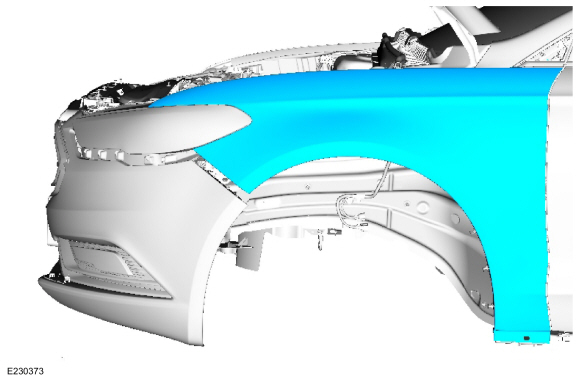

  1. Remove the fender.
Ford Fusion. Fender. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
