Ford Fusion: Lighting / Lighting Control

Ford Fusion. Lighting Control

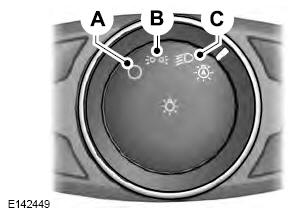

  1. Lamps off.
  2. Parking lamps, instrument panel lamps, license plate lamps and tail lamps.
  3. Headlamps.

Headlamp High Beam

Ford Fusion. Lighting Control

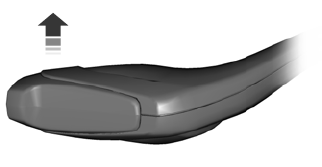

Ford Fusion. Lighting Control Push the lever away from you to switch the high beam on.

Push the lever forward again or pull the lever toward you to switch the high beams off.

Flashing the Headlamp High Beam

Ford Fusion. Lighting Control

Slightly pull the lever toward you and release it to flash the headlamps.
