Ford Fusion: Engine Cooling - 1.5L EcoBoost (118kW/160PS) – I4 / Block Heater. Removal and Installation
Ford Fusion 2013–2020 Service Manual / Powertrain / Engine / Engine Cooling - 1.5L EcoBoost (118kW/160PS) – I4 / Block Heater. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
-
Refer to: Engine Cooling System Health and Safety Precautions (100-00 General Information, Description and Operation).
WARNING:
Before beginning any service procedure in this
section, refer to Safety Warnings in section 100-00 General Information.
Failure to follow this instruction may result in serious personal
injury.
-
Drain the cooling system.
Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03A Engine Cooling - 1.5L EcoBoost (118kW/160PS) – I4, General Procedures).
-
NOTICE: Make sure the block heater wiring is routed and secured away from rotating or hot components.
-

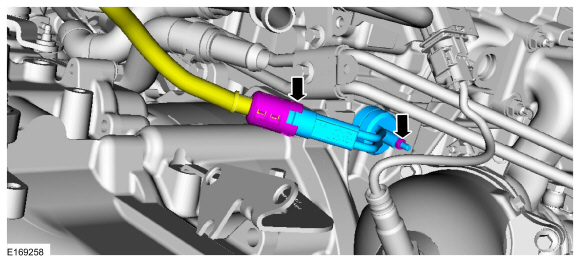

Disconnect the block heater electrical connector.
-
Remove the nut and the block heater.
Torque: 35 lb.in (4 Nm)
-
Disconnect the block heater electrical connector.
 |
Installation
-
To install, reverse the removal procedure.
