Ford Fusion: Engine Cooling - 1.5L EcoBoost (118kW/160PS) – I4 / Coolant Pump. Removal and Installation

Special Tool(s) / General Equipment

Ford Fusion. Coolant Pump. Removal and Installation 303-1556
Locking Tool, Timing Belt
TKIT-2010B-FLM
TKIT-2010B-ROW
Ford Fusion. Coolant Pump. Removal and Installation 303-748
Locking Tool, Crankshaft
TKIT-2010B-FLM
TKIT-2010B-ROW
Hose Clamp Remover/Installer
4 mm Drill Bit

Removal

NOTE: The original coolant pump may not be equipped with a clutch and wiring harness connector.

  1. Refer to: Engine Cooling System Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Drain the cooling system.
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03A Engine Cooling - 1.5L EcoBoost (118kW/160PS) – I4, General Procedures).

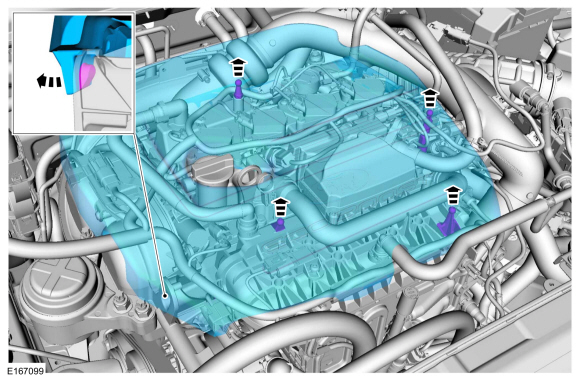

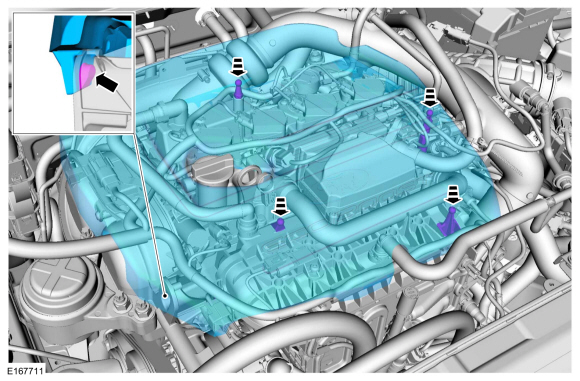

  1. Remove the engine appearance cover.
Ford Fusion. Coolant Pump. Removal and Installation

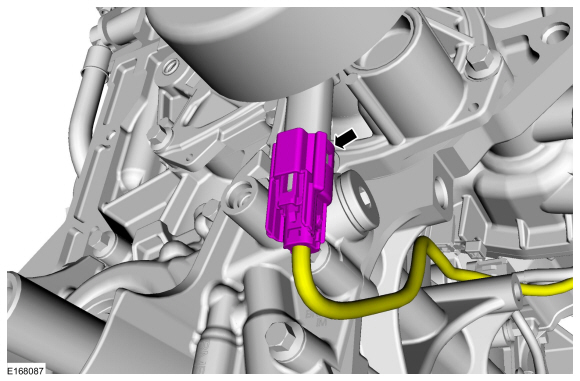

  1. Disconnect the electrical connector.
Ford Fusion. Coolant Pump. Removal and Installation
  1. Detach the wiring harness hose assembly and disconnect the electrical connector.
Ford Fusion. Coolant Pump. Removal and Installation
  1. Remove the following items:
    1. Remove the air cleaner outlet pipe.
      Refer to: Air Cleaner Outlet Pipe (303-12A Intake Air Distribution and Filtering - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).
  1. Remove the crankcase vent hose.
    Use the General Equipment: Hose Clamp Remover/Installer
Ford Fusion. Coolant Pump. Removal and Installation

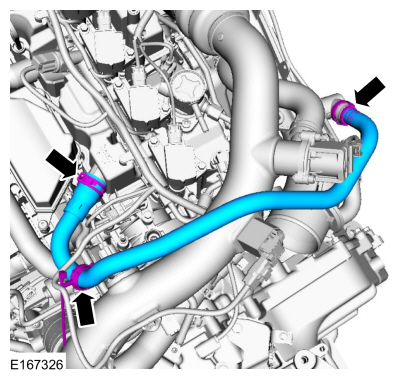

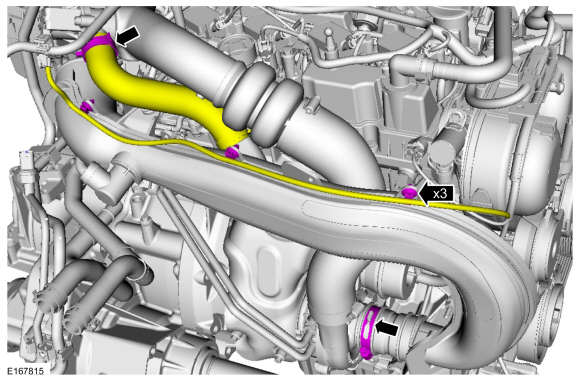

  1. Release the clamp and disconnect the bypass hose. Detach the wiring harness pin-type retainers and loosen the clamp.
    Use the General Equipment: Hose Clamp Remover/Installer
Ford Fusion. Coolant Pump. Removal and Installation

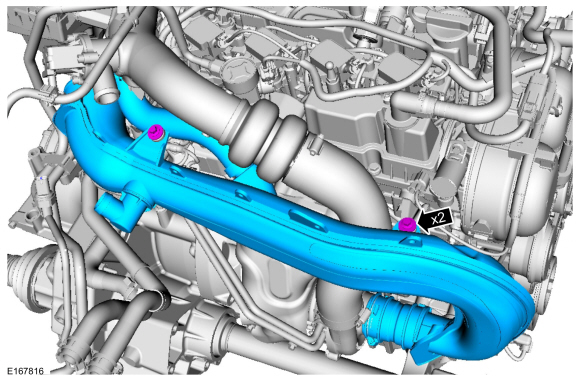

  1. Remove the bolts and the TC inlet pipe.
Ford Fusion. Coolant Pump. Removal and Installation

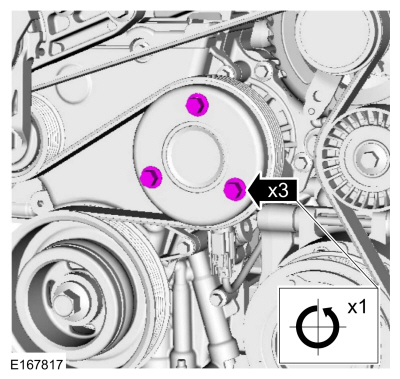

  1. Loosen the coolant pump pulley bolts.
Ford Fusion. Coolant Pump. Removal and Installation
  1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

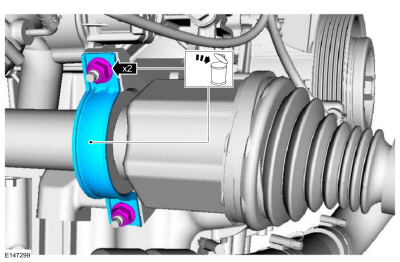

  1. Remove the nuts and the axle bearing support.
Ford Fusion. Coolant Pump. Removal and Installation
  1. NOTE: It may be necessary to rotate the halfshaft to remove the front lower bolt.

    Remove the bolts and position the bracket support aside.
Ford Fusion. Coolant Pump. Removal and Installation

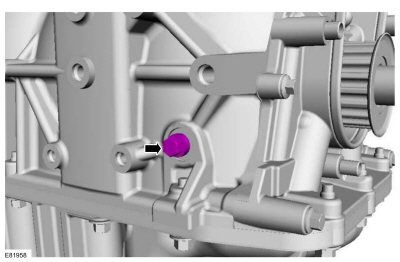

  1. Remove the engine block bolt.
Ford Fusion. Coolant Pump. Removal and Installation

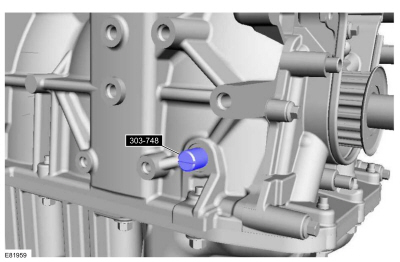

  1. Install Special Service Tool: 303-748  Locking Tool, Crankshaft.
Ford Fusion. Coolant Pump. Removal and Installation

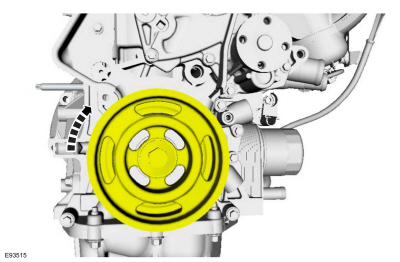

  1. NOTICE: Only rotate the crankshaft clockwise.

    Rotate the crankshaft slowly until the crankshaft stops.
Ford Fusion. Coolant Pump. Removal and Installation
  1. Remove the following items:
    1. Remove the generator.
      Refer to: Generator - 1.5L EcoBoost (118kW/160PS) – I4 (414-02 Generator and Regulator, Removal and Installation).
    2. Remove the engine mount.
      Refer to: Engine Mount (303-01A Engine - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).

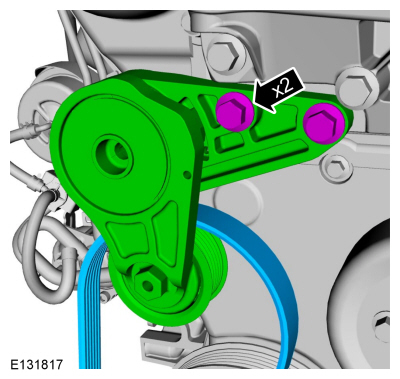

  1. Remove the bolts and the accessory drive belt tensioner.
Ford Fusion. Coolant Pump. Removal and Installation

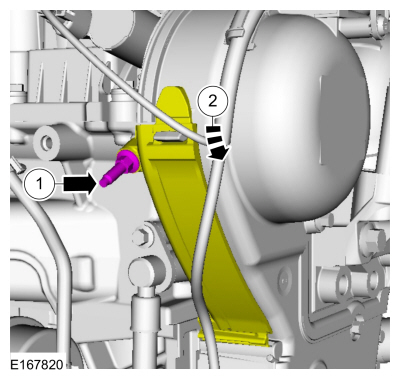

    1. Detach the wiring harness retainer and remove the nut.
    1. Remove the bolt and the supporting bracket.
Ford Fusion. Coolant Pump. Removal and Installation
    1. Remove the timing cover stud bolt.
    1. Detach the cover from the retainer and open.
Ford Fusion. Coolant Pump. Removal and Installation
    1. Remove the bolts and the coolant pump pulley.
    1. Remove the engine mount stud.
    1. Detach the wiring harness retainers.
    1. Remove the bolt.
    1. Detach the wiring harness retainer.
    1. Remove the bolt.
    1. Remove the bolts.
Ford Fusion. Coolant Pump. Removal and Installation
  1. NOTE: If the vehicle is equipped with a coolant pump that has a clutch, it may be necessary to break the timing belt cover during removal. Install a new timing belt cover.

    Remove the timing belt cover.
Ford Fusion. Coolant Pump. Removal and Installation

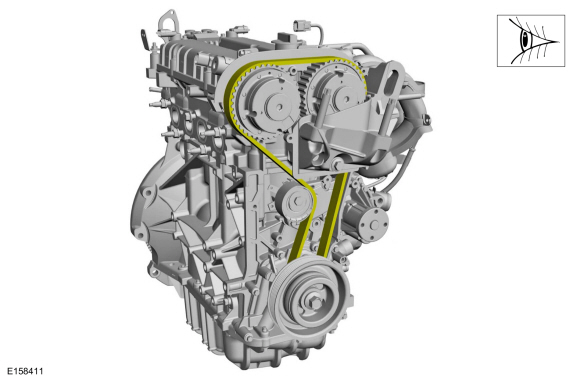

  1. NOTE: Timing belt removal is only necessary if a new timing belt is being installed.

    Install a new timing belt if the existing belt is contaminated by coolant or oil.
    Refer to: Timing Belt (303-01A Engine - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).
Ford Fusion. Coolant Pump. Removal and Installation
  1. NOTE: The original coolant pump may not be equipped with a clutch and wiring harness connector.

    Disconnect the electrical connector.
Ford Fusion. Coolant Pump. Removal and Installation
    1. NOTICE: Only use the specified special tool.

      NOTICE: Make sure that the crankshaft is not rotated while the special tool is installed.

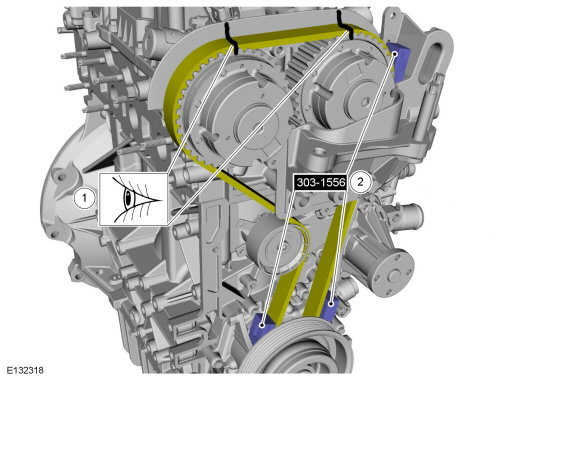

      Install Special Service Tool: 303-1556  Locking Tool, Timing Belt.

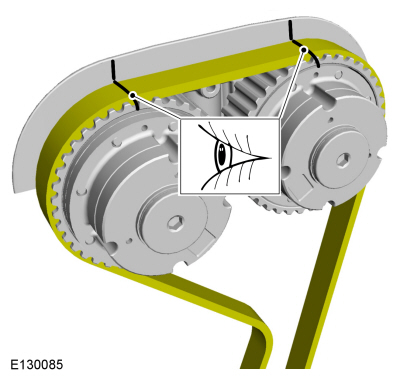

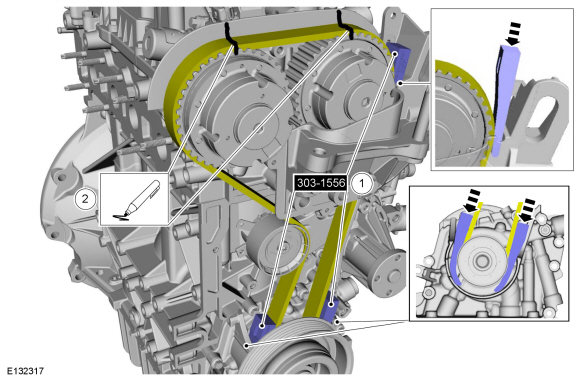

    1. NOTICE: Note the position of the components before removal.

Ford Fusion. Coolant Pump. Removal and Installation
  1. Ford Fusion. Coolant Pump. Removal and Installation  WARNING: The tensioner is under spring tension. Be careful when handling the tensioner. Failure to follow this instruction may result in personal injury.

    NOTICE: The crankshaft or camshafts must not be rotated while the timing belt is removed.

    Rotate the timing belt tensioner and install a holding pin.
    Install the General Equipment: 4 mm Drill Bit
Ford Fusion. Coolant Pump. Removal and Installation

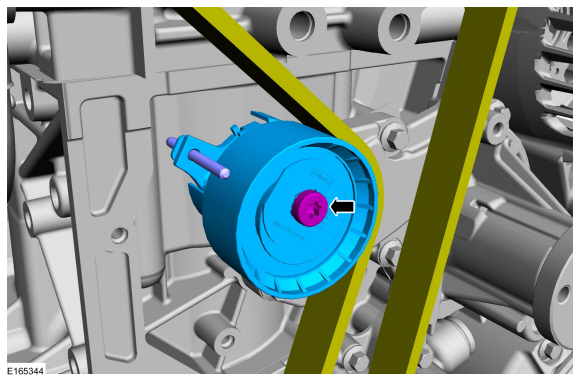

  1. Ford Fusion. Coolant Pump. Removal and Installation  WARNING: The tensioner is under spring tension. Be careful when handling the tensioner. Failure to follow this instruction may result in personal injury.

    Remove the bolt and timing belt tensioner.
Ford Fusion. Coolant Pump. Removal and Installation
  1. NOTICE: Protect the timing belt and the lower timing belt cover from contamination by the coolant.

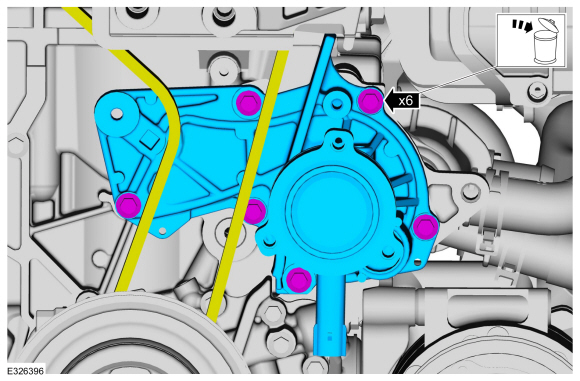

    • Remove the bolts and the coolant pump.
    • Discard the bolts.
Ford Fusion. Coolant Pump. Removal and Installation

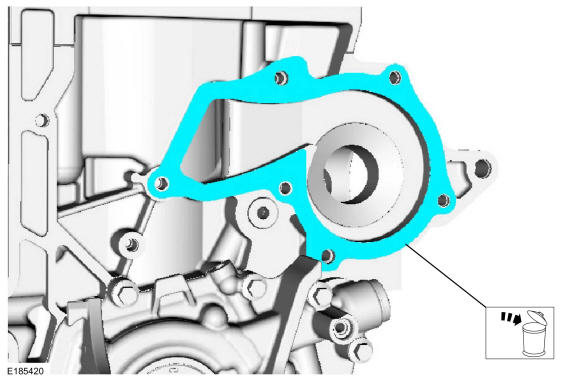

  1. Remove and discard the gasket.
Ford Fusion. Coolant Pump. Removal and Installation

Installation

NOTE: The replacement coolant pump is not equipped with a clutch and engine harness connector plug. Check OASIS for any applicable SSMs. If an SSM exists, follow SSM instructions. When the original coolant pump is equipped with a clutch and engine harness connector, cut the harness connector off, use heat shrink to seal the wire ends, and tape back the wires as needed.

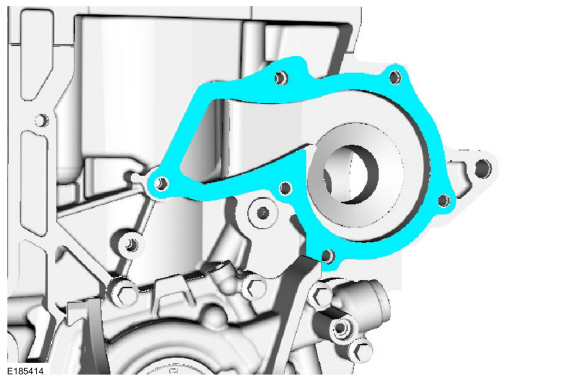

  1. NOTE: Make sure that the mating faces are clean and free of foreign material.

    Install a new gasket.
Ford Fusion. Coolant Pump. Removal and Installation

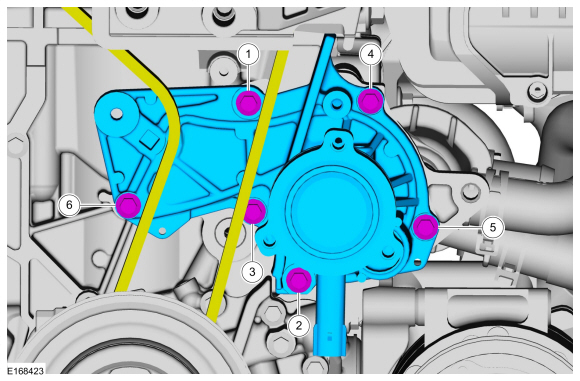

  1. NOTE: Make sure that new bolts are installed.

    Install the coolant pump and the new bolts.
    Torque:
      Stage 1:  53 lb.in (6 Nm)
      Stage 2:  89 lb.in (10 Nm)
Ford Fusion. Coolant Pump. Removal and Installation
  1. NOTE: Make sure that the components are installed to the position noted before removal.

Ford Fusion. Coolant Pump. Removal and Installation

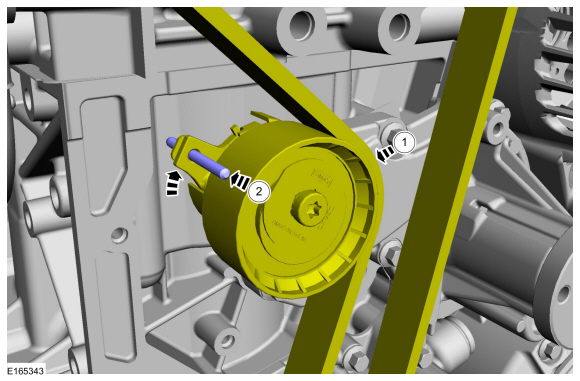

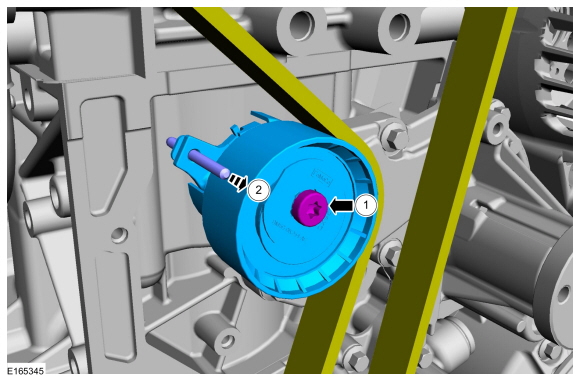

  1. Ford Fusion. Coolant Pump. Removal and Installation  WARNING: The tensioner is under spring tension. Be careful when handling the tensioner. Failure to follow this instruction may result in personal injury.

    1. Install the timing belt tensioner and tighten the bolt.
      Torque: 18 lb.ft (25 Nm)
    1. Remove the holding pin.
      Remove the General Equipment: 4 mm Drill Bit
Ford Fusion. Coolant Pump. Removal and Installation
    1. NOTE: Make sure that the components are installed to the position noted before removal.

    1. Remove Special Service Tool: 303-1556  Locking Tool, Timing Belt.
Ford Fusion. Coolant Pump. Removal and Installation
  1. Remove Special Service Tool: 303-748  Locking Tool, Crankshaft.
Ford Fusion. Coolant Pump. Removal and Installation
  1. Install and tighten the engine block bolt.
    Torque: 177 lb.in (20 Nm)
Ford Fusion. Coolant Pump. Removal and Installation
  1. Rinse residual engine coolant off the timing belt and the related drive components.

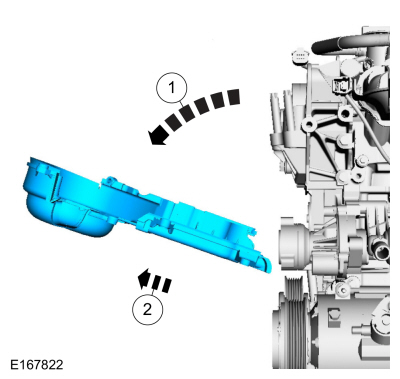

  1. Install the timing belt cover.
Ford Fusion. Coolant Pump. Removal and Installation

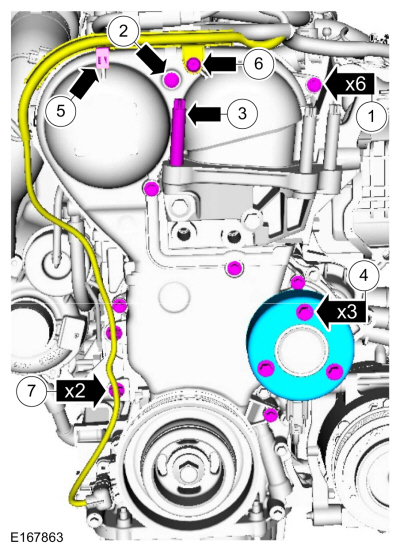

    1. Install the timing belt cover bolts.
      Torque: 89 lb.in (10 Nm)
    1. Install the bolt.
      Torque: 89 lb.in (10 Nm)
    1. Install and tighten the engine mount stud.
      Torque: 71 lb.in (8 Nm)

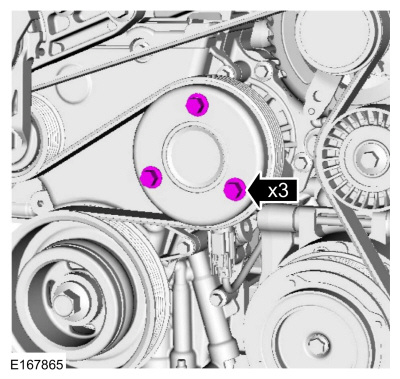

    1. NOTE: Only tighten the bolts finger tight at this stage.

      Install the coolant pump pulley and tighten the bolts.
    1. Position the wiring aside assembly and attach the wiring harness retainer.
    1. Install and tighten the bolt.
    1. Attach the wiring harness retainers.
Ford Fusion. Coolant Pump. Removal and Installation
    1. Close the cover and attach the retainer.
    1. Install and tighten the timing cover stud bolt.
      Torque: 89 lb.in (10 Nm)
Ford Fusion. Coolant Pump. Removal and Installation

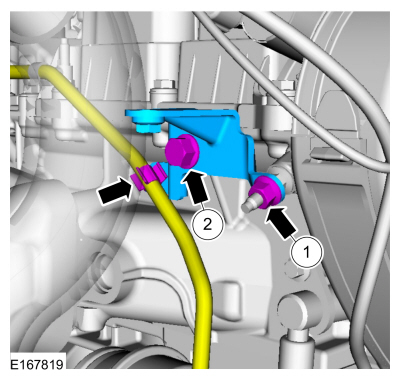

    1. Install the supporting bracket and tighten the nut.
      Torque: 62 lb.in (7 Nm)

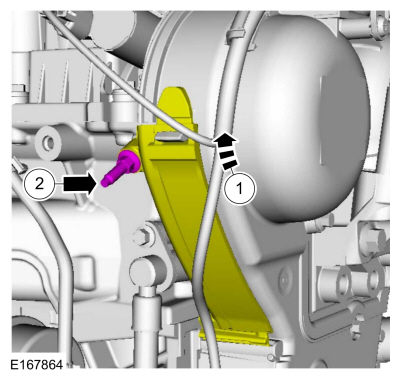

    1. Install the bolt and attach the wiring harness retainer.
      Torque: 17 lb.ft (23 Nm)
Ford Fusion. Coolant Pump. Removal and Installation
  1. Install the accessory drive tensioner and tighten the bolts.
    Torque: 35 lb.ft (48 Nm)
Ford Fusion. Coolant Pump. Removal and Installation
  1. Install the following items:
    1. Install the engine mount.
      Refer to: Engine Mount (303-01A Engine - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).
    2. Install the generator.
      Refer to: Generator - 1.5L EcoBoost (118kW/160PS) – I4 (414-02 Generator and Regulator, Removal and Installation).

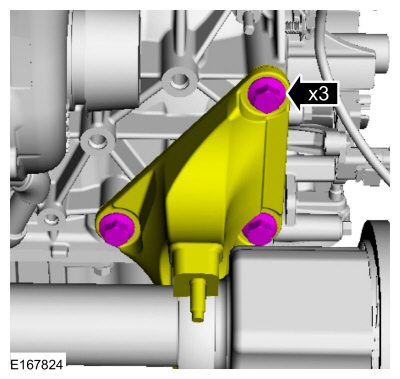

  1. Position the support bracket and tighten the bolts.
    Torque: 35 lb.ft (48 Nm)
Ford Fusion. Coolant Pump. Removal and Installation
  1. NOTE: Make sure that a new component is installed.

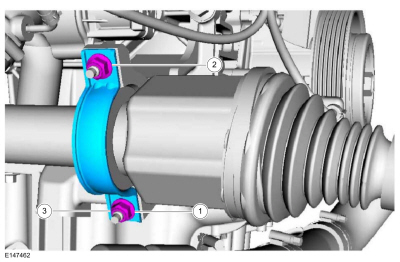

    Install the axle bearing support and tighten the nuts.
    Torque:
      Stage 1:  44 lb.in (5 Nm)
      Stage 2:  18 lb.ft (25 Nm)
      Stage 3:  18 lb.ft (25 Nm)
Ford Fusion. Coolant Pump. Removal and Installation

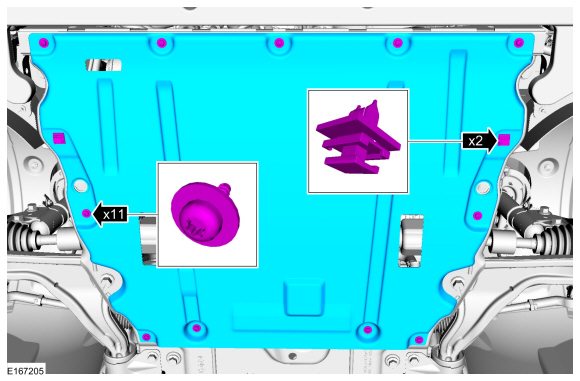

  1. Install the underbody shield and the retainers.
Ford Fusion. Coolant Pump. Removal and Installation
  1. Tighten the bolts.
    Torque: 18 lb.ft (24 Nm)
Ford Fusion. Coolant Pump. Removal and Installation
  1. Install the TC inlet pipe and tighten the bolts.
    Torque: 71 lb.in (8 Nm)
Ford Fusion. Coolant Pump. Removal and Installation
    1. Tighten the clamp.
      Torque: 44 lb.in (5 Nm)

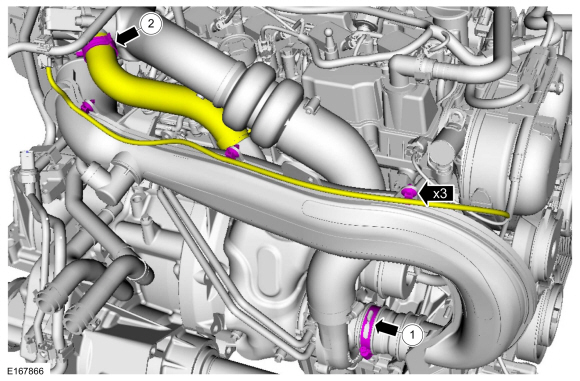

    1. Connect the bypass hose and attach the wiring harness retainers.
      Use the General Equipment: Hose Clamp Remover/Installer
Ford Fusion. Coolant Pump. Removal and Installation
  1. Install the vent hose.
    Use the General Equipment: Hose Clamp Remover/Installer
Ford Fusion. Coolant Pump. Removal and Installation
  1. Install the following items:
    1. Install the air cleaner outlet pipe.
      Refer to: Air Cleaner Outlet Pipe (303-12A Intake Air Distribution and Filtering - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).

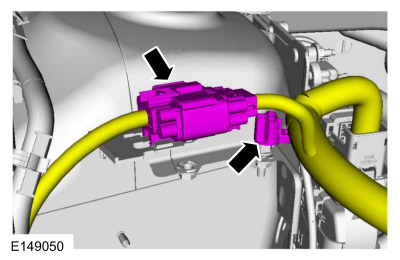

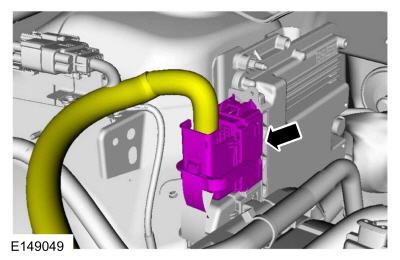

  1. Connect the electrical connector and attach the wiring harness retainer.
Ford Fusion. Coolant Pump. Removal and Installation
  1. Connect the electrical connector.
Ford Fusion. Coolant Pump. Removal and Installation
  1. Install the engine appearance cover.
Ford Fusion. Coolant Pump. Removal and Installation
  1. Fill the bleed the cooling system.
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03A Engine Cooling - 1.5L EcoBoost (118kW/160PS) – I4, General Procedures).
