Ford Fusion: Roof Opening Panel / Timing Adjustment. General Procedures

Special Tool(s) / General Equipment

Flat-Bladed Screwdriver

Adjustment

NOTICE: A new frame assembly is not equipped with a motor. When a motor is not installed, and the frame is moved, the cables/mechanisms can experience free-play movement causing the timing to become out of adjustment. Before transferring a motor to a new frame assembly, the Timing Adjustment must be carried out to assure correct roof opening panel operation.

  1. On both sides.

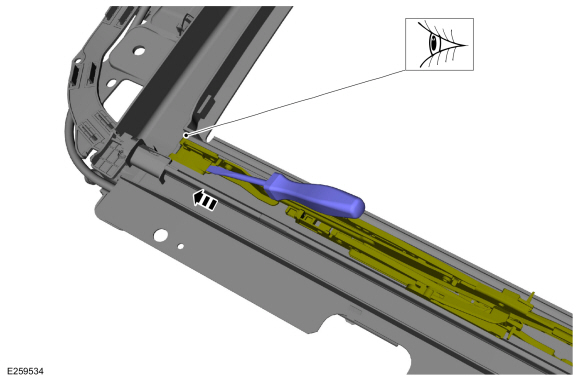

    Inspect and make sure the mechanisms are fully forward in the frame guides.
    Use the General Equipment: Flat-Bladed Screwdriver
Ford Fusion. Timing Adjustment. General Procedures
  1. On both sides.
    Move the cable brackets forward until they come to a stop placing the mechanisms in the VENT position.
    Use the General Equipment: Flat-Bladed Screwdriver
Ford Fusion. Timing Adjustment. General Procedures
  1. NOTICE: Installing the motor will lock the mechanisms and prevent them from moving. When installing the motor, make sure the mechanisms do not move.

    NOTE: When positioning the roof opening panel motor, it may be necessary to turn the roof opening panel motor slightly to engage the drive splines.

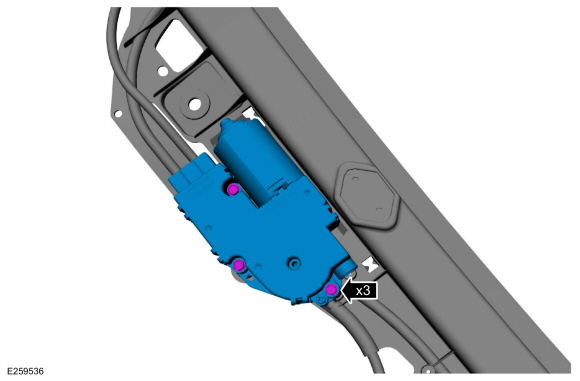

    Install the motor and the bolts.
    Torque: 35 lb.in (4 Nm)
Ford Fusion. Timing Adjustment. General Procedures
