Ford Fusion: Automatic Transmission - 6-Speed Automatic Transmission – 6F35 / Selector Shaft Seal. Removal and Installation
Special Tool(s) /
General Equipment
 |
307-581 Manual lever seal installer TKIT-2006UF-FLM TKIT-2006UF-ROW |
Flat Headed Screw Driver |
Removal
-
Remove the TR sensor.
Refer to: Transmission Range (TR) Sensor (307-01A Automatic Transmission - 6-Speed Automatic Transmission – 6F35, Removal and Installation).
-

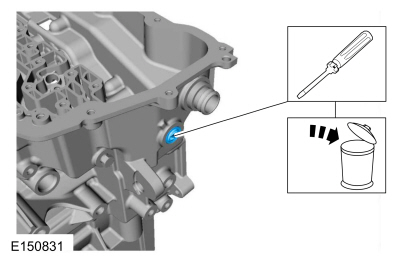

Remove and discard the selector shaft seal.
Use the General Equipment: Flat Headed Screw Driver
Installation
-
Using the special tool, install the new selector shaft seal.
Use Special Service Tool: 307-581
Manual lever seal installer.
-
Install the TR sensor.
Refer to: Transmission Range (TR) Sensor (307-01A Automatic Transmission - 6-Speed Automatic Transmission – 6F35, Removal and Installation).
