Ford Fusion: Seatbelt Systems / Seatbelt Shoulder Height Adjuster. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Seatbelt Systems / Seatbelt Shoulder Height Adjuster. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the B-pillar trim panel.
    Refer to: B-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

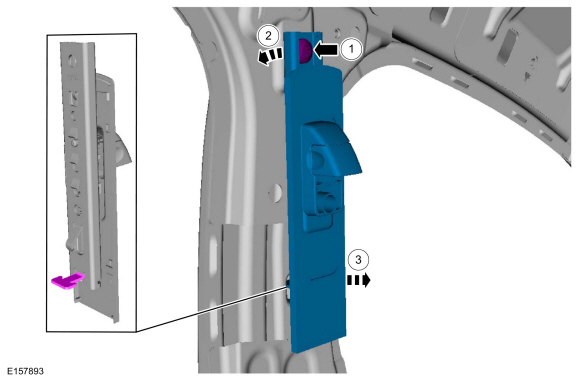

    1. Remove the bolt.
      Torque: 30 lb.ft (40 Nm)
    1. Rotate the seatbelt shoulder height adjuster to release the locking tab.
    1. Remove the seatbelt shoulder height adjuster.
Ford Fusion. Seatbelt Shoulder Height Adjuster. Removal and Installation

Installation

  1. NOTE: During installation, make sure the seatbelt webbing is not twisted and the seatbelts and buckles are accessible to the occupants.

    To install, reverse the removal procedure.
  1. Check the seatbelt system for correct operation.
    Refer to: Seatbelt Systems (501-20A Seatbelt Systems, Diagnosis and Testing).
