Ford Fusion: Scheduled Maintenance / Normal Scheduled Maintenance

Intelligent Oil-Life Monitor

Your vehicle has an Intelligent Oil-Life Monitor that determines when you should change the engine oil based on how you use your vehicle. By using several important factors in its calculations, the monitor helps reduce the cost of owning your vehicle and reduces environmental waste at the same time.

This means you do not have to remember to change the oil on a mileage-based schedule. Your vehicle lets you know when an oil change is due by displaying a message in the information display.

The following table provides examples of vehicle use and its impact on oil change intervals. It is a guideline only. Actual oil change intervals depend on several factors and generally decrease with severity of use.

Ford Fusion. Normal Scheduled Maintenance

Ford Fusion. Normal Scheduled Maintenance

Normal Maintenance Intervals

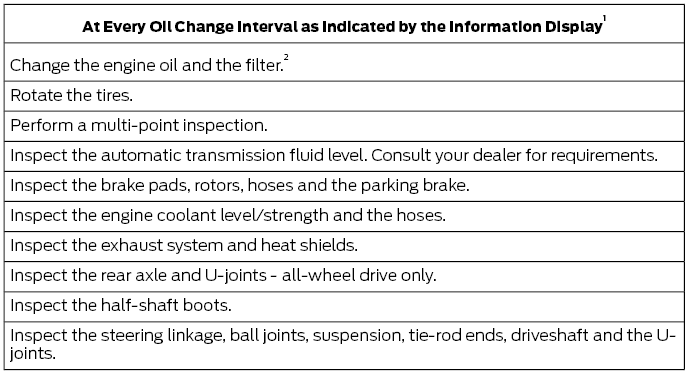

Ford Fusion. Normal Scheduled Maintenance

Ford Fusion. Normal Scheduled Maintenance

1 Do not exceed one year or 10,000 mi (16,000 km) between service intervals.

2 Reset the Intelligent Oil-Life Monitor after engine oil and filter changes.

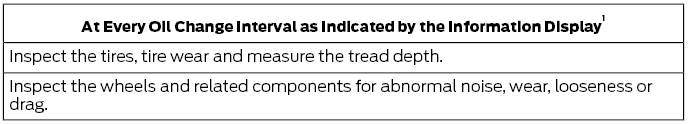

Ford Fusion. Normal Scheduled Maintenance

1 Perform these maintenance items within 3,000 mi (4,800 km) of the last engine oil and filter change. Do not exceed the designated distance for the interval.

2 After initial inspection, inspect every other oil change until replaced.

3 If not replaced within the last 100,000 mi (160,000 km).

4 Initial replacement at 10 years or 200,000 mi (322,000 km), then every five years or 100,000 mi (160,000 km).

    General Maintenance Information

    Why Maintain Your Vehicle? Carefully following the maintenance schedule helps protect against major repair expenses resulting from neglect or inadequate maintenance and may help to increase the value of your vehicle when you sell or trade it...

    Special Operating Conditions Scheduled Maintenance

    If you operate your vehicle primarily in any of the following conditions, you need to perform extra maintenance as indicated. If you operate your vehicle occasionally under any of these conditions, it is not necessary to perform the extra maintenance...
