Ford Fusion: Front Suspension / Wheel Knuckle. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Chassis / Suspension / Front Suspension / Wheel Knuckle. Removal and Installation

Special Tool(s) / General Equipment

Tie Rod End Remover

Removal

NOTICE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

  1. Remove the front wheel bearing and wheel hub.
    Refer to: Front Wheel Bearing and Wheel Hub (204-01 Front Suspension, Removal and Installation).

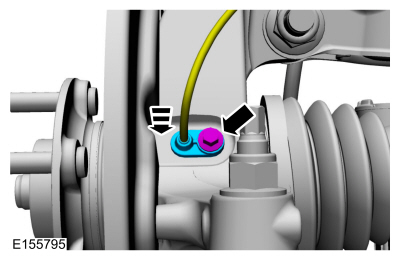

  1. Remove the wheel speed sensor bolt and position the wheel speed sensor aside.
Ford Fusion. Wheel Knuckle. Removal and Installation

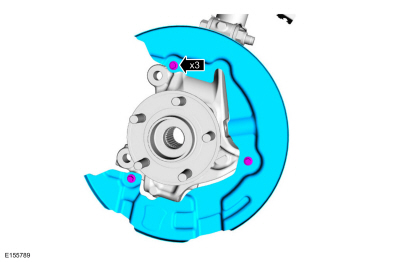

  1. Remove the brake disc shield retainers and the brake disc shield.
Ford Fusion. Wheel Knuckle. Removal and Installation

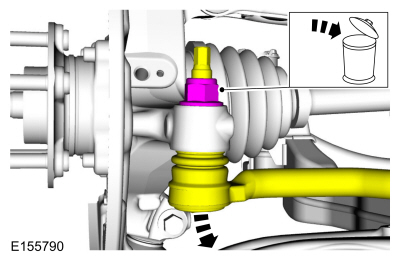

  1. Remove and discard the tie rod end nut and separate the tie rod end from the wheel knuckle.
    Use the General Equipment: Tie Rod End Remover
Ford Fusion. Wheel Knuckle. Removal and Installation

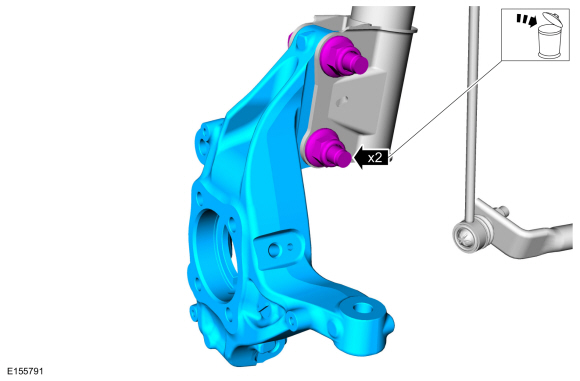

  1. Remove and discard the front strut and spring assembly-to-wheel knuckle bolts and nuts and remove the wheel knuckle.
Ford Fusion. Wheel Knuckle. Removal and Installation

Installation

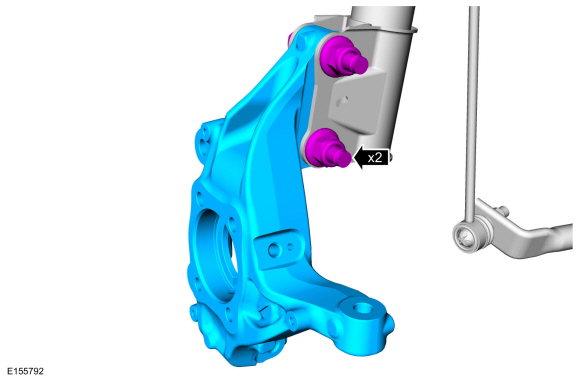

  1. Install the wheel knuckle and install the new front strut and spring assembly-to-wheel knuckle bolts and nuts.
    Torque: 173 lb.ft (235 Nm)
Ford Fusion. Wheel Knuckle. Removal and Installation
  1. Attach the tie rod end to the wheel knuckle and install the new tie rod end nut.
    Torque: 111 lb.ft (150 Nm)
Ford Fusion. Wheel Knuckle. Removal and Installation
  1. Install the brake disc shield and the brake disc shield retainers.
    Torque: 106 lb.in (12 Nm)
Ford Fusion. Wheel Knuckle. Removal and Installation
  1. Position the wheel speed sensor and install the wheel speed sensor bolt.
    Torque: 80 lb.in (9 Nm)
Ford Fusion. Wheel Knuckle. Removal and Installation
  1. Install the front wheel bearing and wheel hub.
    Refer to: Front Wheel Bearing and Wheel Hub (204-01 Front Suspension, Removal and Installation).
  1. Check and if necessary adjust front camber.
    Refer to: Front Camber Adjustment (204-00 Suspension System - General Information, General Procedures).
