Ford Fusion: Roof Opening Panel / Roof Opening Panel Glass. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Roof Opening Panel / Roof Opening Panel Glass. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Ford Fusion. Roof Opening Panel Glass. Removal and Installation  WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. On both sides.
    Detach the top portion of the roof opening panel blind and fold it down to get access to the roof opening panel glass retainers.
Ford Fusion. Roof Opening Panel Glass. Removal and Installation
  1. NOTE: Blind removed for clarity.

    On both sides.

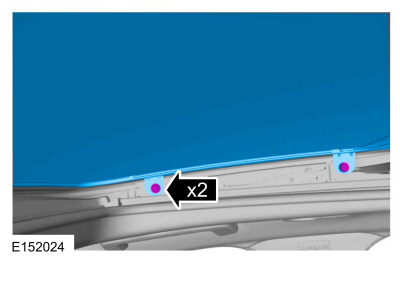

    Remove the retainers.
    Torque: 53 lb.in (6 Nm)
Ford Fusion. Roof Opening Panel Glass. Removal and Installation

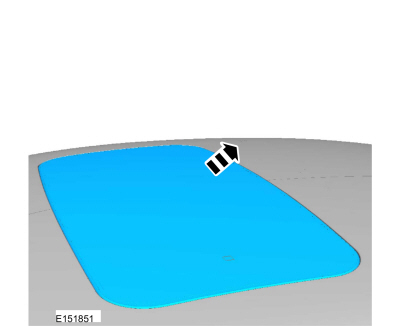

  1. Remove the roof opening panel glass assembly.
Ford Fusion. Roof Opening Panel Glass. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
  1. Align the roof opening panel.
    Refer to: Roof Opening Panel Alignment (501-17 Roof Opening Panel, General Procedures).
  1. Initialize the power roof opening panel.
    Refer to: Power Roof Opening Panel Initialization (501-17 Roof Opening Panel, General Procedures).
