Ford Fusion: Information and Entertainment System - General Information - Vehicles With: SYNC 3 / Rear Door Tweeter Speaker. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the rear door trim panel.
Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

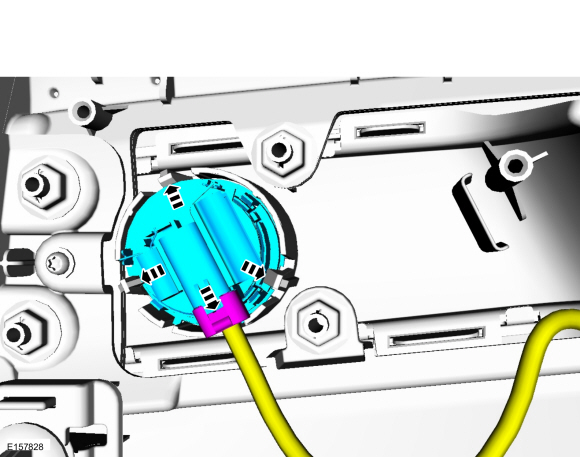

Release the tabs and remove the front door tweeter speaker.
-
Disconnect the electrical connector.
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the rear door trim panel.
Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation)...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the parcel shelf.
Refer to: Parcel Shelf (501-05 Interior Trim and Ornamentation, Removal and Installation)...
Other information:
Removal
Remove the main control valve body.
Refer to: Main Control Valve Body (307-01A Automatic Transmission - 6-Speed Automatic Transmission – 6F35, Removal and Installation).
Remove the OSS sensor bolt and the OSS sensor...
