Ford Fusion: Information and Entertainment System - General Information - Vehicles With: SYNC 3 / Subwoofer Amplifier. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the parcel shelf.
    Refer to: Parcel Shelf (501-05 Interior Trim and Ornamentation, Removal and Installation).

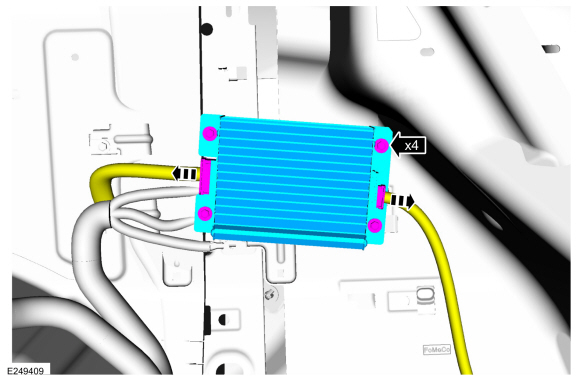

  1. Remove the bolts and the amplifier.
    • Disconnect the electrical connector.
      Torque: 22 lb.in (2.5 Nm)
Ford Fusion. Subwoofer Amplifier. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
