Ford Fusion: Bumpers / Rear Bumper Cover. Disassembly and Assembly

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Bumpers / Rear Bumper Cover. Disassembly and Assembly

DISASSEMBLY

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the rear bumper cover.
    Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).
  1. Remove the rear active parking assist sensors.
    Refer to: Rear Active Park Assist Sensors (413-13B Parking Aid - Vehicles With: Active Park Assist, Removal and Installation).
  1. Remove the rear parking aid sensors.
    Refer to: Rear Parking Aid Sensor (413-13A Parking Aid, Removal and Installation).

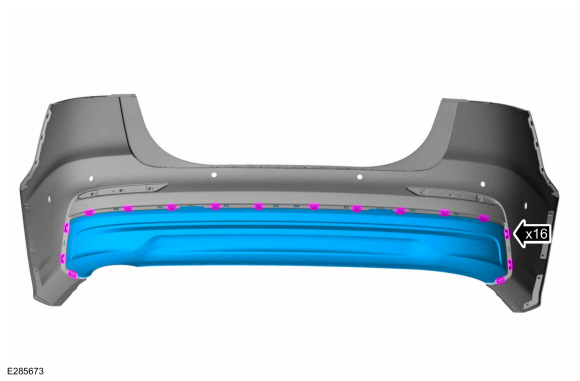

  1. Release the tabs and remove the center rear bumper cover.
Ford Fusion. Rear Bumper Cover. Disassembly and Assembly

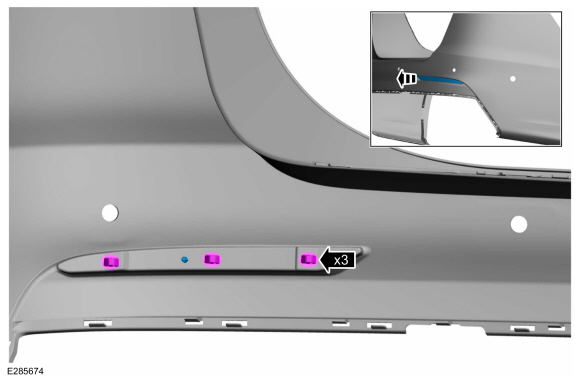

  1. On both sides.
    Release the tabs and remove the rear bumper cover reflector.
Ford Fusion. Rear Bumper Cover. Disassembly and Assembly

ASSEMBLY

  1. To assemble, reverse the disassembly procedure.
