Ford Fusion: Engine System - General Information / Piston Diameter. General Procedures

Check

NOTE: Refer to the appropriate Section 303-01 for the specification.

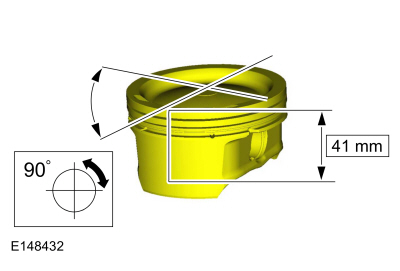

  1. Measure the piston diameter 90 degrees from the piston pin and 41 mm (1.61 in) down from the top of the piston at the point indicated.
Ford Fusion. Piston Diameter. General Procedures

    Piston Selection. General Procedures

    Check NOTE: Refer to the appropriate Section 303-01 for the specifications. NOTE: The cylinder bore must be within the specifications for taper and out-of-round before fitting a piston...

    Powertrain/Drivetrain Mount Neutralizing. General Procedures

    Adjustment NOTE: Refer to the appropriate section and procedure for special instructions on loosening and tightening mount fasteners. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation)...
