Ford Fusion: Handles, Locks, Latches and Entry Systems / Interior Rear Door Handle. Removal and Installation

Removal

NOTE: LH side shown, RH side similar.

  1. Remove the rear door trim panel.
    Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

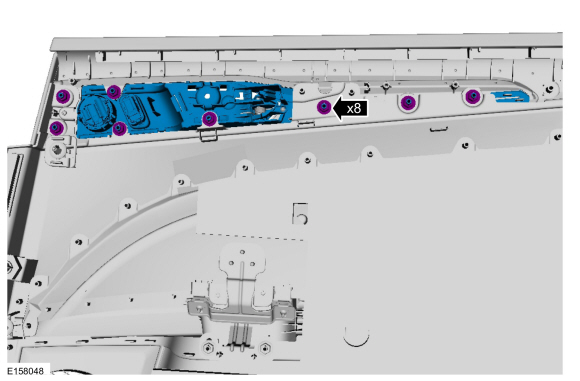

  1. Remove the retainers and remove the interior front door handle.
Ford Fusion. Interior Rear Door Handle. Removal and Installation
  1. NOTE: This step is only necessary when installing a new component.

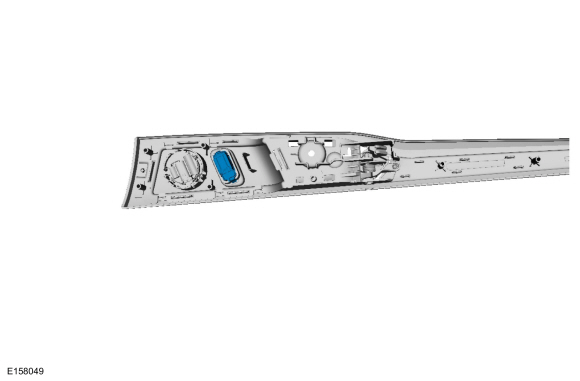

    Remove the door lock control switch.
Ford Fusion. Interior Rear Door Handle. Removal and Installation
  1. NOTE: This step is only necessary when installing a new component.

    If equipped
    Remove the speaker.
Ford Fusion. Interior Rear Door Handle. Removal and Installation

Installation

  1. To install, reverse the removal procedure.

    Interior Front Door Handle. Removal and Installation

    Removal NOTE: LH side shown, RH side similar. NOTE: Removal steps in this procedure may contain installation details. Remove the front door trim panel...

    Luggage Compartment Lid Release Switch. Removal and Installation

    Removal Remove the luggage compartment lid moulding. Refer to: Luggage Compartment Lid Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation)...
